LK-SL Ladle Infrared Thermal Imaging Monitoring System |
Main Features：
●German Original Imported High-Precision Infrared Thermal Imager

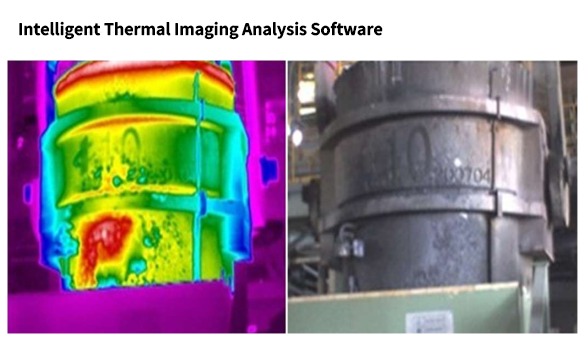

●Real-time and intuitive monitoring of the temperature distribution on the ladle shell
●Intelligent Zoning Judgment of Lining Defects
●Real-time Data Recording and Storage
●Data Historical Query
●Acoustic and Optical Alarm Signals
|
Main Application Fields：
Online Real-time Monitoring of Temperature Distribution on the Shells of Converters, Ladles, Tundishes, and RH Vacuum Furnaces
|
Main Configuration：

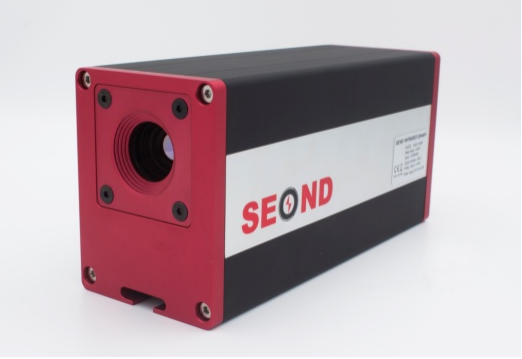

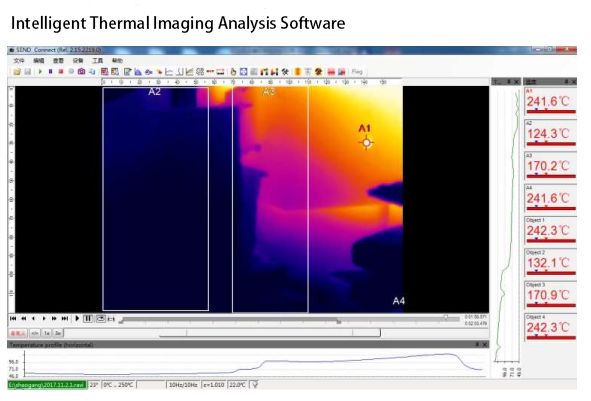

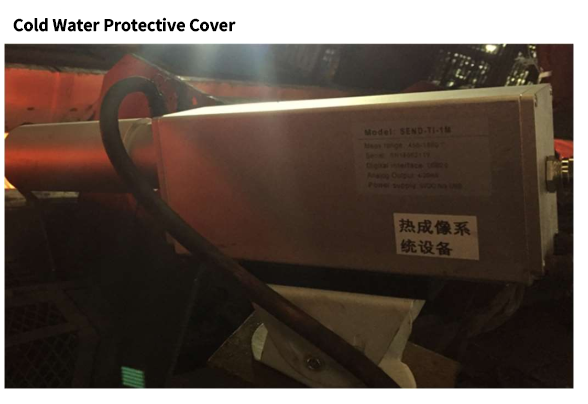

Infrared Thermal Imager Host (including 2.5m cable), Control Box, Thermal Imaging Processor, Dedicated Power Supply, Network Transmission Switch, Protocol Converter, Intelligent Thermal Imaging Analysis Software, Water-Cooled Protective Cover and other installation accessories
|
| Technical Parameters |
| Model： |
LK - SL - M230 |
| Measurement range： |
-20 ~ 900°C |
| Maximum pixels： |
640×480 |
| Spectral response： |
7 - 14μm |
| Detector： |
CMOS (15μm×15μm) |
| Measurement accuracy： |
±1% (measured value) |
| Frame rate： |
128 - 1000Hz |
| Field of view： |
13°... 90° HFOV |
| Thermal sensitivity: |
40/80mK |
| Response time: |
4ms |
| Emissivity: |
0.100 - 1.099 |
| Electrical Parameters |
| Analog Output: |
1 channel 4 - 20mA (expandable) |
| Digital Output: |
RS485 (dynamic real-time thermal imaging video) |
| Output Impedance: |
500Ω (at 24VDC) |
| Power Supply: |
220VAC |
| General Parameters |
| Environmental Class: |
IP65 (NEMA - 4) |
| Ambient Temperature: |
0 - 50℃ |
| Storage Temperature： |
-20 - 80℃ |
| Relative Humidity： |
10 - 95%, no condensation |
| Dimensions： |
72×95mm, L = 194mm |
| Weight： |
5000g |
|
 |
 |
 |
|
