LK-SL钢包红外热成像监测系统 |
主要特点：
●德国原装进口高精度红外热成像仪；

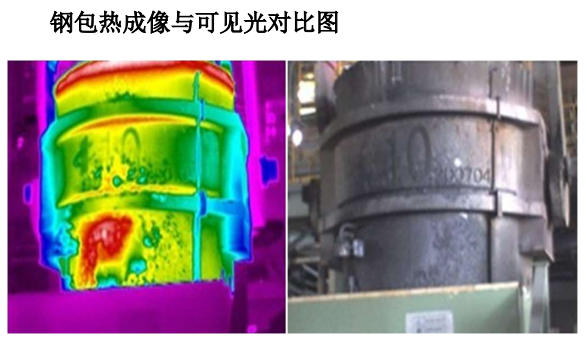

●实时直观的监测钢包外壳温度分布；
●智能分区判断内衬缺陷；
●实时数据记录储存；
●数据历史查询；
●声光报警信号；
|
Main Application Fields：
Online real-time monitoring of the temperature distribution on the outer shell of converters, ladles, tundishes, and RH vacuum furnaces
|
Main Configuration：

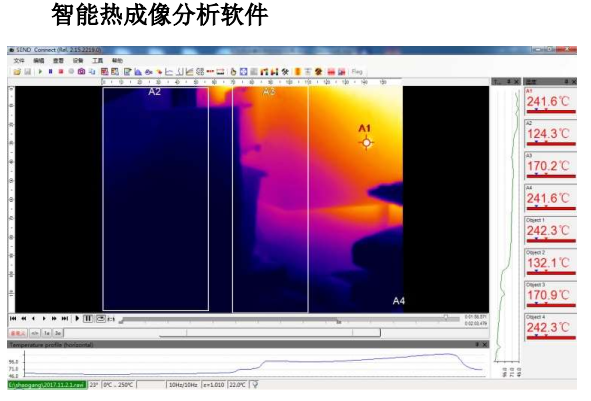

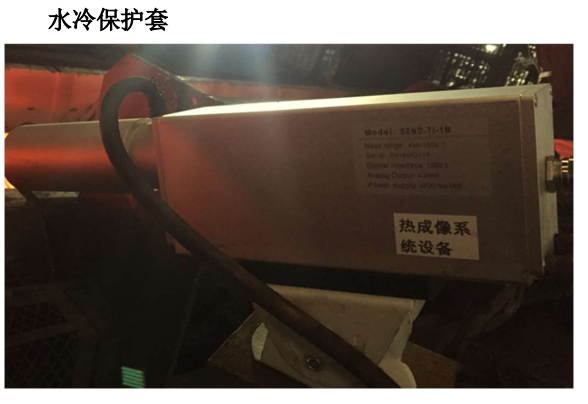

Infrared Thermal Imager Host (with 2.5m Cable), Control Box, Thermal Imaging Processor, Dedicated Power Supply, Network Transmission Switch, Protocol Converter, Intelligent Thermal Imaging Analysis Software, Water-Cooled Protective Sleeve, and Other Installation Accessories
|

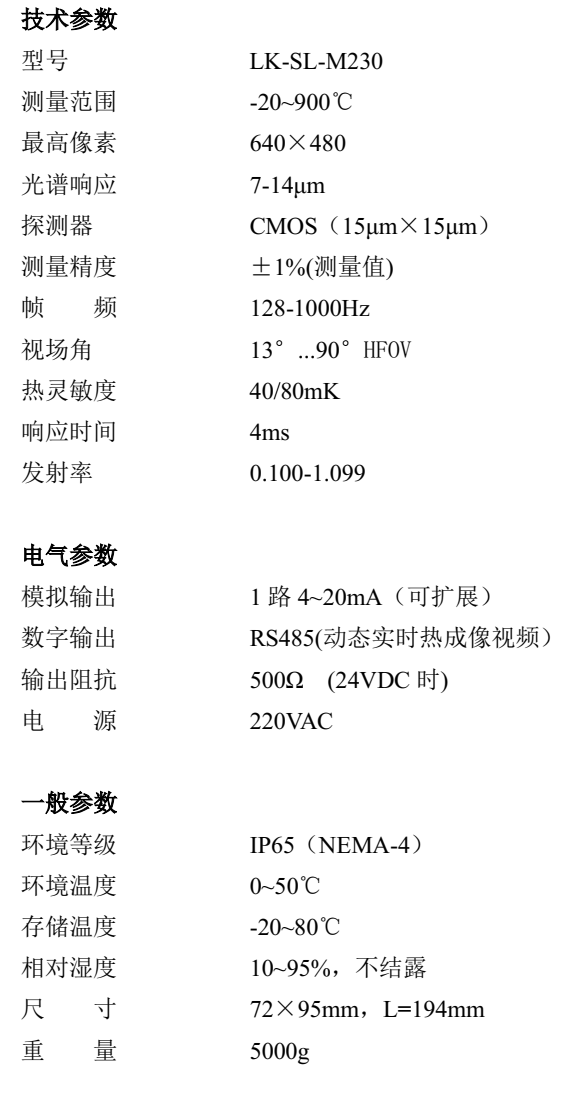

| Technical Parameters |
| Model |
LK-SL-M230 |
| Measurement Range |
-20~900℃ |
| Maximum Resolution |
640×480 |
| Spectral Response |
7-14μm |
| Detector |
CMOS (15μm×15μm) |
| Measurement Accuracy |
±1% (of Measured Value) |
| Frame Rate |
128-1000Hz |
| Field of View (FOV) |
13° ... 90° HFOV |
| Thermal Sensitivity |
40/80mK |
| Response Time |
4ms |
| Emissivity |
0.100-1.099 |
| Electrical Parameters |
| |
|
| |
|
| |
|
| |
|
|
 |
 |
 |
|
