LK-VM Low-Frequency Vibration Detection Device |
Main Features：
●Swiss Original Imported Seismic-Grade High-Sensitivity Low-Frequency Vibration Sensor

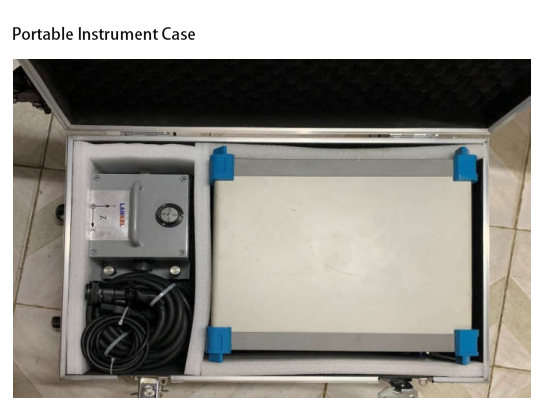

●It can be used as a portable detection device or embedded in the mold for online application.
●Real-time Display of X, Y, Z Three-Dimensional Vibration Displacement Data
●It can withstand harsh environments such as high temperature, high humidity and high dust.

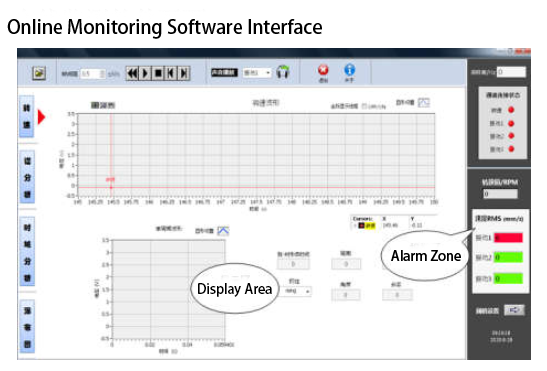

●It records vibration waveforms and frequency spectra online and monitors the development trend of the vibration table status.
●Dedicated Vibration Table Signal Analysis and Fault Diagnosis
●Online Monitoring of Vibration Displacement and Lateral Deflection of the Shaker
|
Main Application Fields：

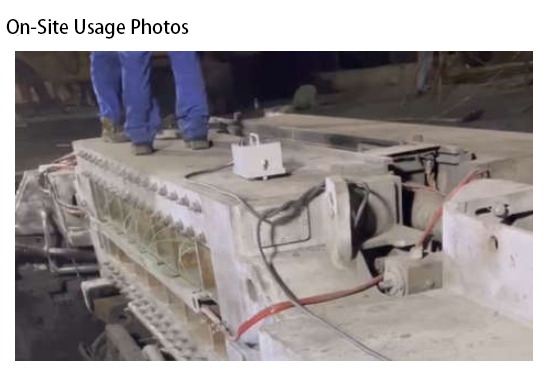

It is used for online monitoring of the working status of continuous casting mold shakers or other rotating and vibrating mechanical equipment, as well as inspecting and accepting the effectiveness of shaker maintenance.
|
Main Configuration：
Standard Configuration: Shaker Monitoring Host, Vibration Sensor, Communication Cable
Optional Configuration: Wireless Vibration Sensor (with lithium battery), Shaker-Specific Monitoring, Analysis and Diagnosis Software
|
| Technical Parameters |
| Model |
LK - VM - XYZ - □ |
| Vibration Detection Range |
0 - 10000μm |
| Vibration Frequency Range |
1Hz - 5Hz |
| Measurement Sensitivity |
1μm |
| Measurement Accuracy |
10μm |
| Signal Processing Accuracy |
32 - bit A/D conversion |
| Dynamic Range |
80dBfs (0.01% of full scale) |
| Sensitivity in All Directions |
1000 mV/g |
| Acceleration Range |
3g Peak |
| Amplitude Nonlinearity |
1% |
| Transverse Sensitivity |
< 3% |
| Electrical Parameters |
| Analog Output |
4 - 20 mA |
| Digital Output |
RS232/PROFIBUS DP |
| Power Supply |
220VAC |
| General Parameters |
| Sensor Material |
Aluminum alloy shell |
| Sensor Weight |
Approximately 15kg |
| Sensor External Dimensions |
200x160x160 (mm) |
| Sensor Operating Temperature |
-20°C ~ +80°C |
| Sensor Protection Class |
IP67, impact - resistant |
| Host Operating Temperature |
0°C ~ +60°C |
| Host Operating Humidity |
≤90%, non - condensing |
|
 |
 |
 |
|
