LK-TH-LI-1.0 Temperature and Humidity Acquisition Server |
Main Features ：

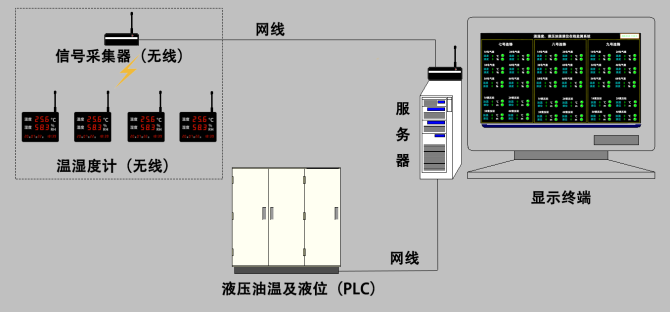

●Receives signals from temperature and humidity sensors, hydraulic oil temperature, and liquid level
●The WINCC configuration software is bound to the database
●Connect to the PLC via a signal converter
●Connect to the signal acquisition module via a signal converter and receive signals

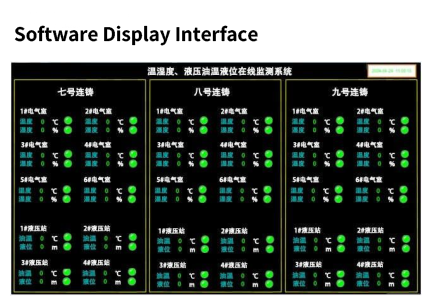

●Remotely monitor signals such as temperature, humidity, and hydraulic oil temperature in real time
●Data on the server can be accessed from any terminal within the local area network (LAN)
|
Main Application Fields：
It is suitable for centralized acquisition, display and monitoring of temperature and humidity signals in units such as aerospace institutions, scientific research institutes, colleges and universities, factory metrology stations, and laboratories.
|
Package Contents
Standard Configuration: Server Host, Monitor, Temperature and Humidity Signal Acquisition Terminal Software |
| Measurement Parameters |
| Model： |
LK-TH-LI-1.0 |
| Mainboard： |
PowerEdge R940 |
| Processor I7-4770, 4 Cores 8 Threads, 3.9GHz Memory32G |
| Operating System： |
Windows 10 Professional Edition |
| Storage： |
2TB |
| Controller： |
PERC H740P RAID, 8Gb NV Cache |
| Network Daughter Card： |
Broadcom 5720 QP 1Gb |
| Software： |
Temperature and Humidity Online Monitoring System V1.0 |
| Electrical Parameters |
| Panel： |
EMC LCD compatible with PowerEdge R940 |
| Digital Output： |
RS232 Standard |
| Power Supply： |
220VAC, 50Hz |
| General Parameters |
| Housing Material： |
Aluminum alloy, steel, etc. |
| External Dimensions： |
2.5-inch chassis |
| Display Screen： |
29 inches |
| Weight： |
10 Kg |
| Operating Temperature： |
-20°C ~ +60°C |
| Operating Humidity: |
≤90% (non-condensing) |
|
 |
 |
|
