LK-SRA Automatic Verification Device for Infrared Thermometers |
Main Features：
●One-key Operation for Intelligent Automatic Alignment with the Radiation Source's Target Center Position
●It is equipped with a precision scale, and its repeatability can reach 1mm.
●It is equipped with a precision scale, and its repeatability can reach 1mm.
●Automatically determine whether the radiation source has reached a stable state;

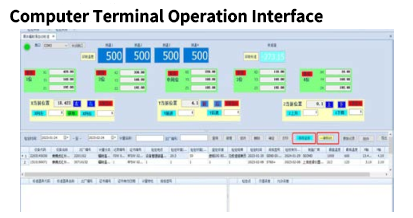

●The up-down, left-right, and front-back movements can all be controlled via the computer terminal.
●The detection position and distance can be automatically determined according to the product model category.
|
Main Application Fields：
It is used for temperature calibration of infrared thermometers and thermal imagers, and applicable to units such as aerospace institutions, scientific research institutes, colleges and universities, factory metrology stations, and laboratories.
|
Main Configuration：

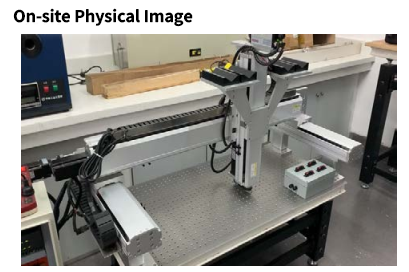

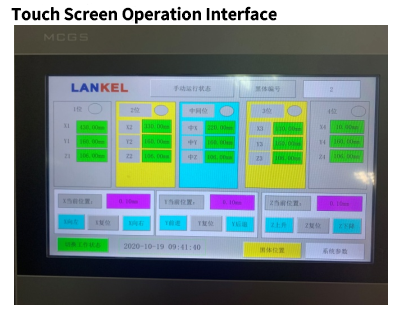

Standard Configuration ：Main Unit、Control Box、Touch Screen、Three-Axis Console、Signal Acquisition Box, etc.
Purchase：Standard Instrument、Wireless Transmission of Analog Signals, etc. |
| Measurement Parameters |
| Model: |
LK-BRA-□-□ |
| Number of Channels to be Verified: |
1-5 Channels (Optional) |
| Adjustment Resolution: |
1mm |
| Movement Accuracy: |
1mm |
| Repeatability: |
1mm |
| Up and Down Movement Stroke: |
200mm |
| Left and Right Movement Stroke: |
800-1200mm |
| Forward and Backward Movement Stroke: |
200mm |
| Electrical Parameters |
| Analog Output: |
4-20 mA |
| Digital Output: |
RS232 Standard |
| Power Supply: |
220VAC, 50Hz |
| General Parameters |
| Shell Material: |
Aluminum Alloy, Stainless Steel, etc. |
| Operating Table Load Capacity: |
10Kg |
| Overall Dimensions: |
800*600*2000 [mm] |
| Weight: |
80 Kg |
| Operating Temperature: |
-20℃~+60℃ |
| Operating Humidity: |
≤90%, No Condensation |
|
 |
 |
 |
|
