LK-LR301M Series Laser Ranging Sensors |
Main Features：
●It can still maintain high measurement accuracy and reliability in harsh environments.
●The measurement range can reach 300 meters (without a reflector).
●Power consumption is stable and extremely low (approximately 5W).
●It uses a visible laser beam, making it easy to aim at the measured object.
●It adopts the power-on-and-test mode, and the instrument will work normally as soon as it is powered on.
●Digital output ports include PROFIBUS/RS232/RS485
●Analog output includes 4-20mA current output or wireless transmission
|
Main Application Areas：

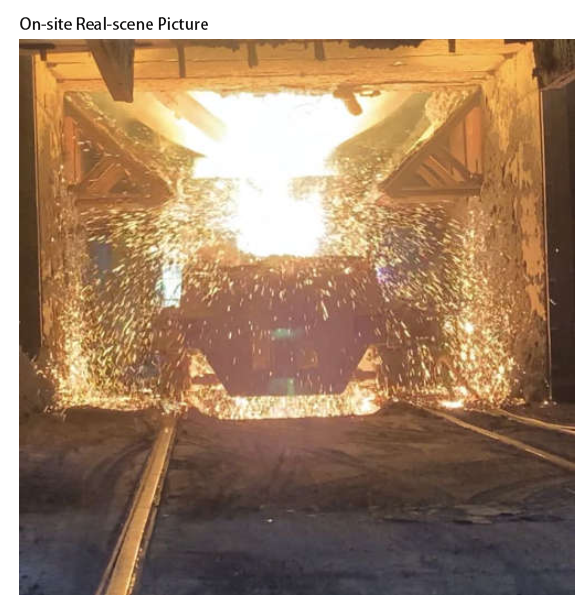

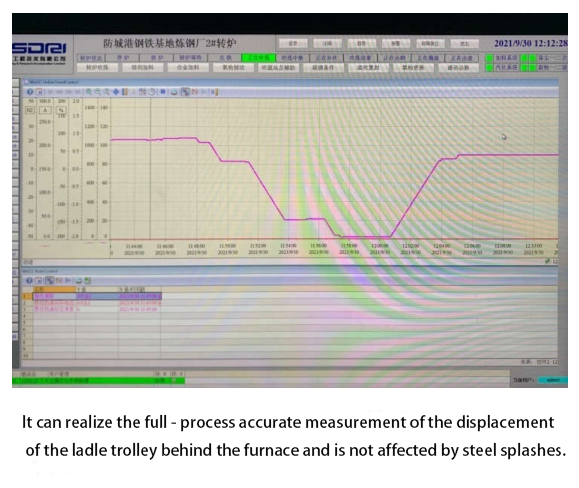

For all on-site locations that require distance measurement, such as ladle trolleys, traveling cranes, railcars, and ships.
|
Packaging Content：
Standard Configuration: Main Unit, Adjustable Universal Bracket, Operation Manual, CD-ROM,
Communication Cable
Optional Items: PROFIBUS DP Digital Output, Analog Signal Wireless Transmission, etc.
|
| Measurement Parameters |
| Model: |
LK - LR301M |
| Measurement Range: |
0.5 - 300m |
| Resolution: |
1mm |
| Measurement Accuracy: |
±20mm |
| Repeatability Accuracy: |
±1mm |
| Measurement Laser: |
905nm (Class I Safe Laser) |
| Aiming Lase: |
650nm (Class II Red Visible Light) |
| Laser Divergence Angle: |
2*0.4 mrad |
| Response Time: |
5ms |
| Electrical Parameters |
| Analog Output: |
4 - 20 mA |
| Digital Output: |
RS485/RS232/PROFIBUS DP |
| Power Supply: |
12 - 24VDC |
| General Parameters |
| Housing Material: |
Aluminum Alloy |
| Dimensions: |
350250100 [mm] |
| Weight: |
2 Kg |
| Protection Class: |
IP65 |
| Vibration Resistance Class： |
EN 60947-5-2 |
| Operating Temperature： |
-20°C......+60 [°C] |
| Storage Temperature： |
: -40°......+70 [°C] |
| Interface： |
: Output Cable |
| General Parameters |
| Housing Material： |
Aluminum Alloy |
| Dimensions： |
350250100 [mm] |
| Weight： |
2 Kg |
| Protection Class： |
IP65 |
| Vibration Resistance Class： |
EN 60947-5-2 |
| Operating Temperature： |
-20°C......+60 [°C] |
| Storage Temperature： |
-40°......+70 [°C] |
| Interface： |
: Output Cable |
|
 |
 |
|
