LK-HS Stelmor Line Infrared Thermal Imaging Monitoring System |
Main Features：
●German Original Imported High-Precision Infrared Thermal Imager
●Real-time and intuitive monitoring of the temperature distribution of coiled wire rods on the Stelmor Line
●Intelligent Zoning Comparison of Temperature Differences between Tower Joints and Non-Tower Joints
●Can output multiple channels of analog temperature signals
●Real-time data recording and storage, historical data query
●Acoustic and Optical Alarm Signals
|
Main Application Fields：

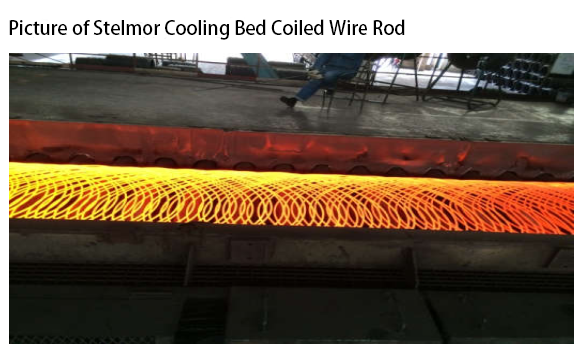

Online Real-time Monitoring of Temperature Distribution of Coiled Wire Rods on the High-speed Wire Rod Stelmor Cooling Bed
|
Main Configuration：

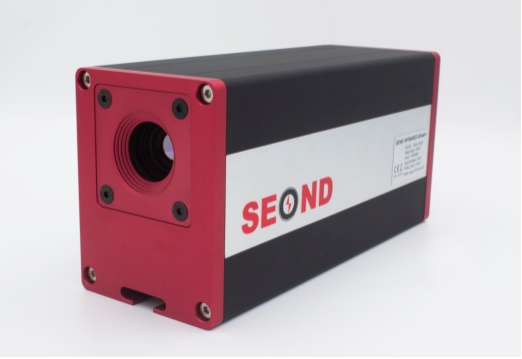

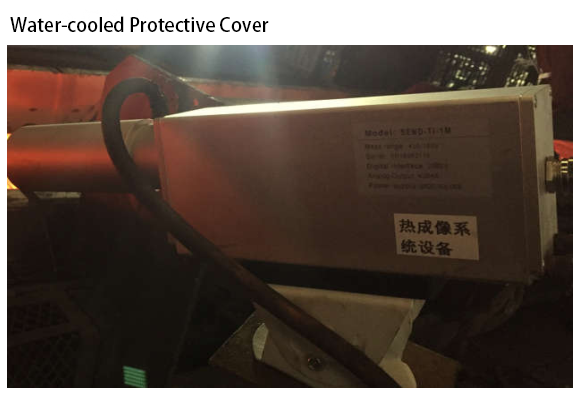

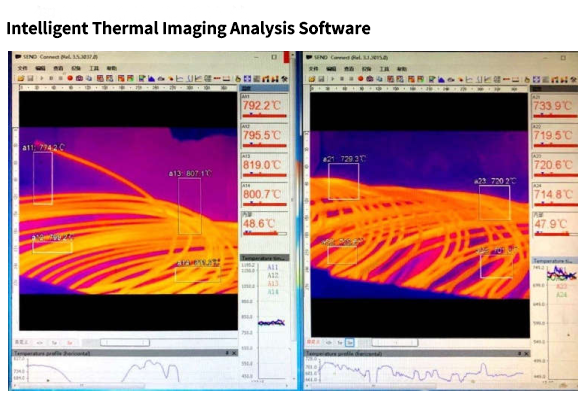

Infrared Thermal Imager Host (including 5m communication cable), Control Box, Thermal Imaging Processor, Dedicated Power Supply, Network Transmission Switch, Protocol Converter, Intelligent Thermal Imaging Analysis Software, Water-cooled Protective Cover and other installation accessories
|
| Technical Parameters |
| Model： |
LK - HS - TI - 1M |
| Measurement Range： |
450 - 1800°C |
| Maximum Pixels ： |
764×480 |
| Spectral Response: |
0.9 - 1.0μm |
| Detector: |
CMOS (15μm×15μm) |
| Measurement Accuracy: |
±1% (measured value) |
| Frame Rate: |
128 - 1000Hz |
| Field of View: |
13°... 90° HFOV |
| Thermal Sensitivity: |
40/80mK |
| Response Time: |
4ms |
| Emissivity: |
0.100 - 1.099 |
| Electrical Parameters |
| Analog Output: |
1 channel 4 - 20mA (expandable) |
| Digital Output: |
RS485 (dynamic real - time thermal imaging video) |
| Output Impedance: |
500Ω (at 24VDC) |
| Power Supply: |
220VAC |
| General Parameters |
| Environmental Rating: |
IP65 (NEMA - 4) |
| Ambient Temperature: |
0 - 50°C |
| Storage Temperature: |
-20 - 80°C |
| Relative Humidity: |
10 - 95%, non - condensing |
| Dimension: |
72×95mm, L = 194mm |
| Weight: |
5000g |
|
 |
 |
 |
|
