LK-HP InfraredThermal Imaging Monitoring System for Hot-Rolled Plates |
Main Features：
●High-precision infrared thermal imager originally imported from Germany
● It can measure the temperatures of up to 360,000 points simultaneously
●Real-time and Intuitive Monitoring of Surface Temperature Distribution on Hot-rolled Plates
●Intelligent Zoning Comparison of Temperature Differences on the Plate Surface
●Can output multiple channels of analog temperature signals
●Real-time Data Recording and Storage, Historical Data Query
●Acoustic and optical alarm signals
|
Main Application Fields：

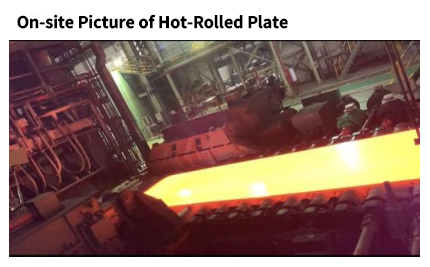

Online real-time monitoring of the surface temperature distribution of hot-rolled plates.
|
Main Configuration：

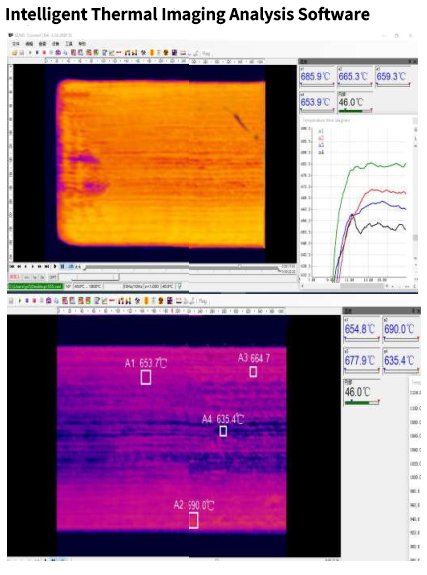

Infrared Thermal Imager Main Unit (including 5m communication cable)、Control Box、Thermal Imaging Processor、Dedicated Power Supply、Network Transmission Switch、Protocol Converter、Intelligent Thermal Imaging Analysis Software、Water-cooled protective cover and other installation accessories.
|
| Technical Parameters |
| Model: |
LK-HP-TI-1M |
| Measurement Range: |
450~1800℃ |
| Maximum Pixel: |
764×480 |
| Spectral Response: |
0.9 - 1.0μm |
| Detector: |
CMOS (15μm×15μm) |
| Measurement Accuracy: |
±1% (of measured value) |
| Frame Rate: |
128 - 1000Hz |
| Field of View (FOV): |
13°...90° HFOV |
| Thermal Sensitivity: |
40/80mK |
| Response Time: |
4ms |
| Emissivity: |
0.100 - 1.099 |
| Electrical Parameters |
| Analog Output: |
1 channel 4~20mA (expandable) |
| Digital Output: |
RS485 (dynamic real-time thermal imaging video) |
| Output Impedance: |
500Ω (at 24VDC) |
| Power Supply: |
220VAC |
| General Parameters |
| Environmental Rating: |
IP65 (NEMA-4) |
| Ambient Temperature: |
0~50℃ |
| Storage Temperature: |
-20~80℃ |
| Relative Humidity: |
10~95%, non-condensing |
| Dimensions: |
72×95mm, L=194mm |
| Weight: |
5000g |
|
 |
 |
|
