LK-HF Infrared Thermographic Monitoring System for Heating Furnaces |
Main Features：
●High-Precision Infrared Thermal Imager, Original Imported from Germany
●Monitor the status and temperature of the billet at the outlet inside the heating furnace in real-time and intuitively
●Intelligent Zoning Judgment for Lining Defects in the Heating Furnace
●It can automatically exit the furnace when gas cut-off, over-temperature or power failure occurs.
●Wide angle, large field of view, and real-time thermal imaging with clear and interference-free images
●Audio-visual alarm signal
|
Main Application Fields：

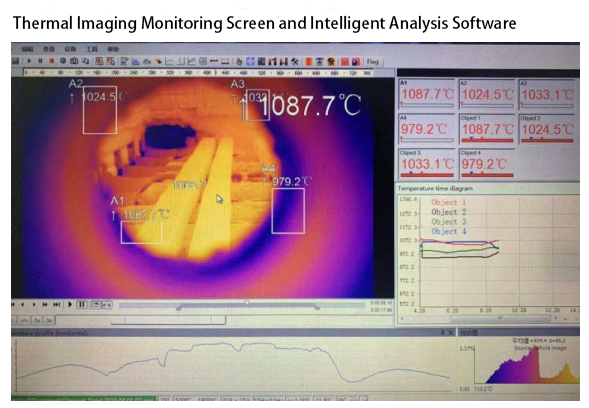

It replaces the high-temperature industrial television to monitor the real-time images of the billets being discharged from the furnace. Meanwhile, it can also measure the discharge temperature of the entire billet and monitor the temperature of the furnace lining.
|

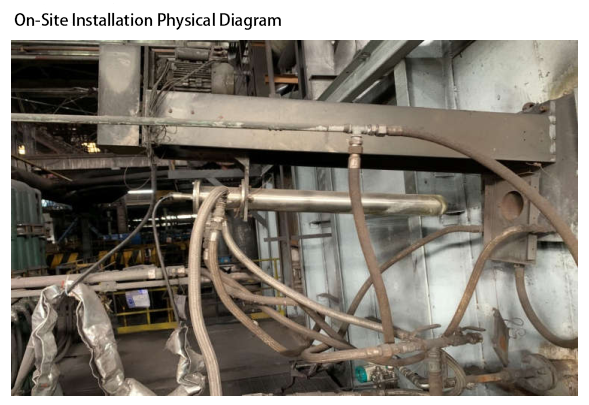

Main Equipment：

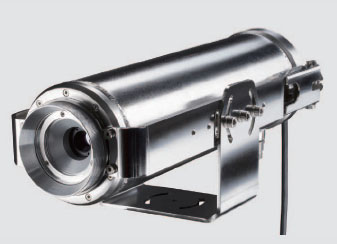

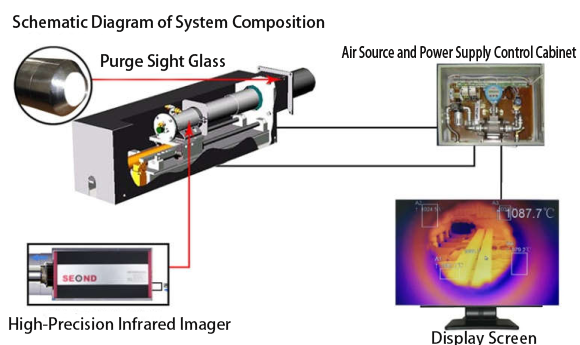

Infrared Thermal Imager Host (including 5m dedicated cable), Control Box, Thermal Imaging Processor, Intelligent Thermal Imaging Analysis Software, Automatic Retraction Device, dedicated air-cooled/water-cooled protective cover and other installation accessories |
| Technical Parameters |
| Model: |
LK - HF - TI - 1M |
| Measurement Range: |
450 - 1800°C |
| Maximum Pixels: |
764×480 |
| Spectral Response: |
0.92 - 1.1μm |
| Detector: |
CMOS (15μm×15μm) |
| Measurement Accuracy: |
±1% (measured value) |
| Frame Rate: |
128 - 1000Hz |
| Field of View： |
13°... 90° HFOV |
| Thermal Sensitivity： |
40/80mK |
| Response Time： |
4ms |
| Emissivity： |
0.100 - 1.099 |
| Electrical Parameters |
| Analog Output： |
1 channel 4 - 20mA (expandable) |
| Digital Output： |
RS485 (dynamic real - time thermal imaging video) |
| Output Impedance： |
500Ω (at 24VDC) |
| Power Supply： |
220VAC |
| General Parameters |
| Environmental Rating： |
IP65 (NEMA - 4) |
| Ambient Temperature 1： |
0 - 60°C (without cooling) |
| Ambient Temperature 2： |
0 - 1300°C (with air cooling, water cooling) |
| Storage Temperature： |
-20 - 80°C |
| Relative Humidity： |
10 - 95%, non - condensing |
| Dimension： |
∅114×800mm |
| Weight： |
8Kg |
|
|
 |
|
|
