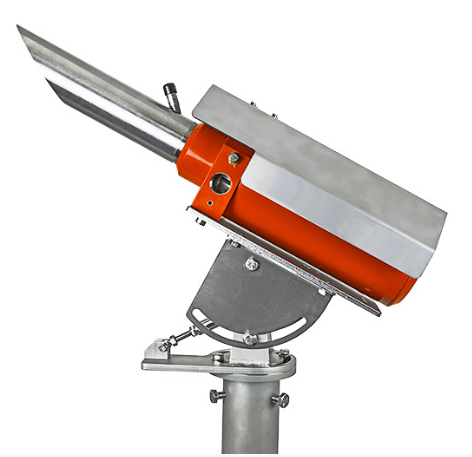

LK-FM Infrared Thermal Imaging Monitoring Device for Relief Tower |
Main Features：
●High-Precision Infrared Thermal Imager Imported Original from Germany

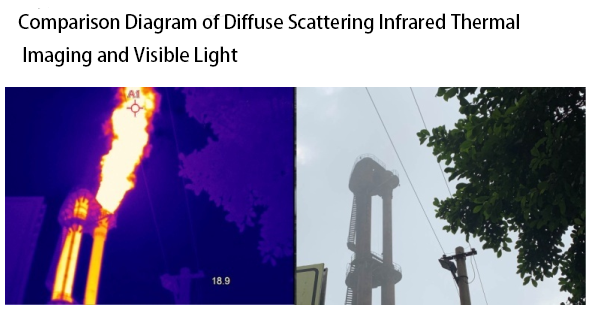

●Real-time and Intuitive Monitoring of the Combustion Status of Diffused Flames
●Can be Installed on the Ground with Convenient Maintenance
●High-resolution optical system enabling long-distance monitoring, with a maximum range of up to 400 meters.
●Adjustable alarm delay circuit to eliminate false alarms caused by temporary signal loss due to intermittent flames, severe weather, and wind.
|
Main Application Fields：
Online real-time monitoring of the ignition and combustion status of the converter and blast furnace gas vent tower; an audible and visual alarm signal can be issued when the flame is extinguished.
|
Main Equipment：

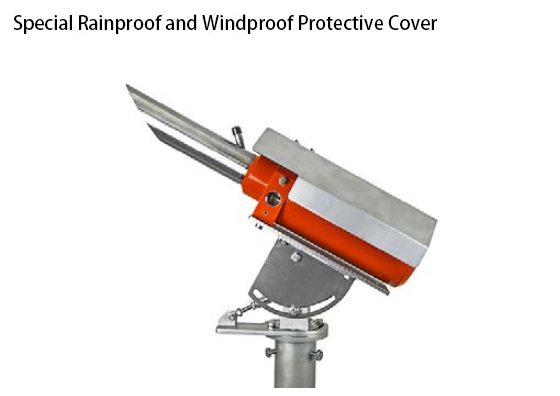

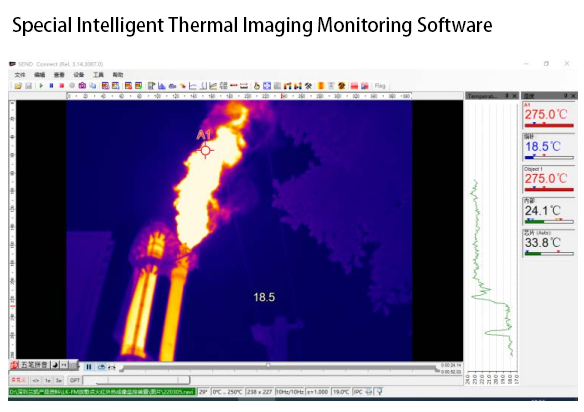

Main unit of infrared thermal imager (including 2.5m cable), control box, thermal imaging processor, dedicated power supply, network transmission switch, protocol converter, intelligent thermal imaging monitoring software, purger, water-cooled protective cover and other installation accessories
|
| Technical Parameters |
| Model: |
LK - FM - M230 |
| Measurement Range: |
-20 ~ 900°C |
| Maximum Pixels: |
640 × 480 |
| Spectral Response: |
7 - 14μm |
| Detector: |
CMOS (15μm × 15μm) |
| Measurement Accuracy: |
±1% (measured value) |
| Frame Rate: |
128 - 1000Hz |
| Field of View: |
13°... 90° HFOV |
| Thermal Sensitivity: |
40/80mK |
| Response Time: |
4ms |
| Emissivity： |
0.100 - 1.099 |
| Electrical Parameters |
| Analog Output： |
1 channel 4 - 20mA (expandable) |
| Digital Output： |
RS485 (dynamic real - time thermal imaging video) |
| Output Impedance： |
500Ω (at 24VDC) |
| Power Supply： |
220VAC |
| General Parameters |
| Environmental Rating： |
IP65 (NEMA - 4) |
| Ambient Temperature： |
0 - 50°C |
| Storage Temperature: |
-20 - 80°C |
| Relative Humidity： |
10 - 95%, non - condensing |
| Dimension: |
72×95mm, L = 194mm |
| Weight: |
5000g |
|
 |
 |
 |
|
