LK-DCI Portable Dual-Color Infrared Calibrator |
Main Features：
●Temperature Measurement Range: 600~1400℃
●Short wavelength: 0.85~1.1μm, applicable to environments such as water mist and flue gas.

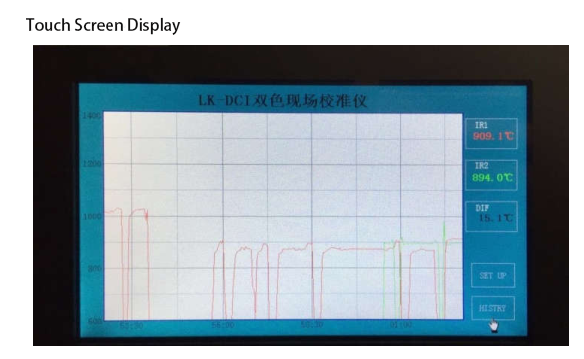

●Embedded Integrated Industrial Touch Screen
●Minimum measurable small target of 0.9mm
●Coaxial Laser Aiming and Lens Aiming
●Emissivity Adjustable
●Powered by a rechargeable lithium battery, it can be used continuously for 20 hours.
●Fixed with a dedicated tripod
|
Main Application Fields：

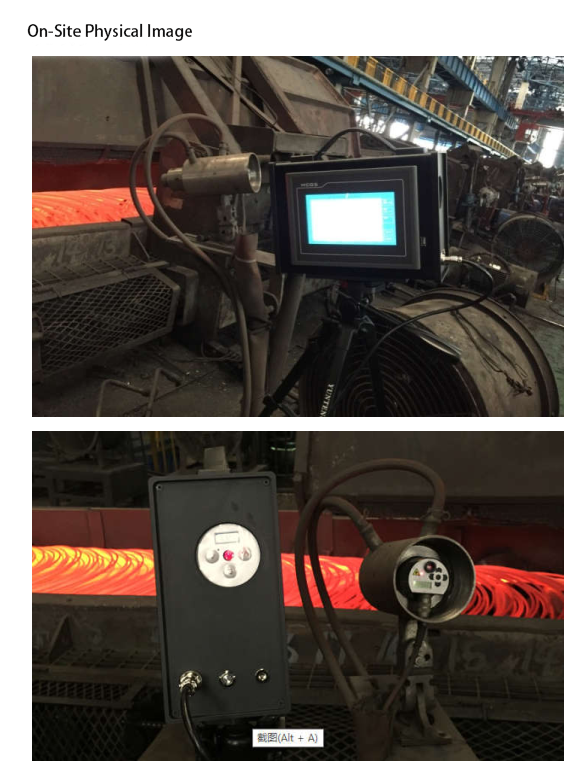

Used for the calibration of blackbody furnaces and the accuracy comparison of on-site online infrared thermometers
|
Main Equipment：
Standard Configuration: Main Unit, Portable Case, Adjustable Universal Bracket, Communication Cable
Optional Items: Analog Output, Digital Output, Software, etc. |
| Measurement Parameters |
| Model： |
LK - DCI - 14AR |
| Measurement Range： |
600 ~ 1400°C |
| Optical Resolution： |
80: 1 (Probe) |
| Wavelength Range： |
0.85 ~ 1.1 μm |
| Measurement Accuracy： |
±(0.75% of measured value + 1°C) |
| Repeatability： |
±(0.1% of measured value + 1°C) |
| Response Time： |
10ms |
| Emissivity： |
0.20 ~ 1.00, Adjustable |
| Electrical Parameters |
| Display： |
Touch screen display |
| Analog Input： |
1 channel (up to 3 channels optional) |
| Digital Output: |
1 channel |
| Laser: |
630nm, 1mW |
| Power Supply： |
25.2V (lithium battery) |
| General Parameters |
| Environmental Rating： |
IP65 (NEMA - 4) |
| Ambient Temperature： |
0 ~ 60°C |
| Storage Temperature： |
-40 ~ 85°C |
| Relative Humidity： |
10 - 95%, non - condensing |
|
 |
 |
|
