LK-BST Argon Blowing Intelligent Control System |
Main Features：
●Adopts high-precision mass flow controllers imported original from the United States
●The entire system operates stably, is easy to operate, and can avoid operational errors.
●Settings from any flow rate to the commonly used flow rate can be completed with just 1 to 3 keystrokes.
●The system requires basically no maintenance.
●Replay historical data and analyze historical data .
|
Main Application Fields：
This system works in conjunction with the porous plug at the bottom of the ladle, supplies argon gas through a connector, and plays roles in stirring the molten steel, purging it with gas, and preventing the molten steel from oxidation.
|
Main Equipment：

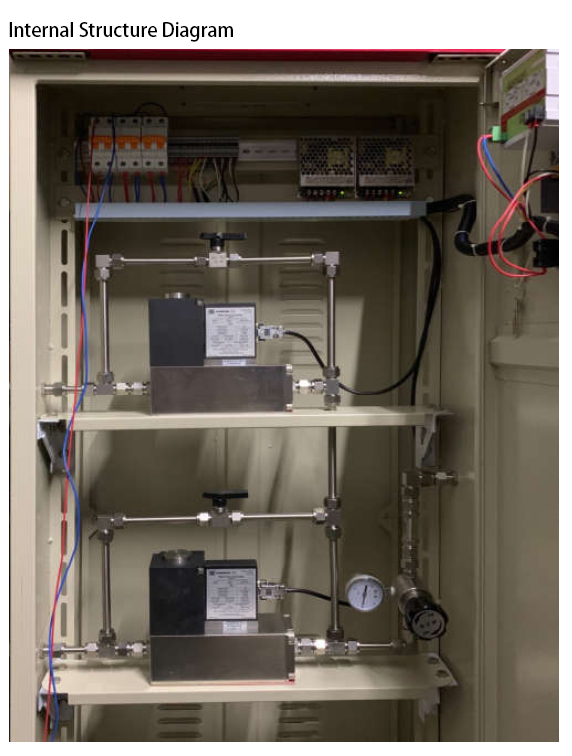

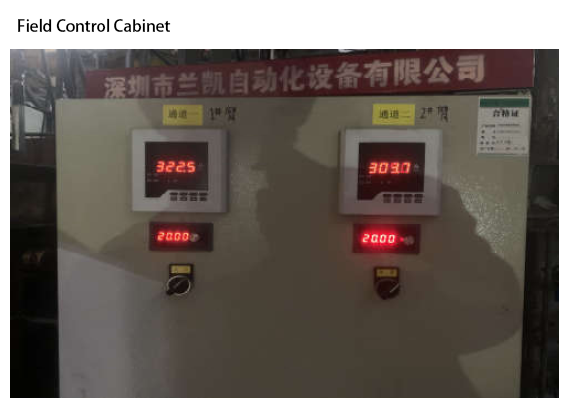

Gas control cabinet, power supply module, gas filtering device, signal acquisition and transmission unit, pressure regulating valve, shut-off valve, bypass regulating control valve, mass flow controller, pressure detection instrument, on-site operation control box (including touch screen, control buttons and indicator lights), argon blowing pipe introduction device, quick-change connector, etc.
|
| Technical Parameters |
| Model |
LK-BST-□-□ |
| Accuracy |
±1.0% of full scale |
| Response Time |
300 millisecond constant |
| Operating Specification |
0 - 100 to 0 - 1000 slpm |
| (The flow range is equivalent to the flow of nitrogen at 21°C with a mercury column of 760 millimeters) |
| Leakage Coefficient |
5 × 10⁻⁹ atm cc/sec helium, or better |
| Controller Control Range |
2 - 100% of full - scale flow; |
| It shuts down automatically at 1.9%. |
| Electrical Parameters |
| Power Supply |
24 VDC ±10%, (1260 mA) |
| Analog Output |
Linear 4 - 20 mA, 500 ohms |
| Digital Output |
RS - 232 standard, RS - 485 optional |
| (Communication between RS - 485 and MODBUS RTU protocol allows for digital multi - station networks) |
| LCD Display |
Optional |
| General Parameters |
| Gas and Ambient Temperature |
0 to 50°C |
| Gas Pressure |
Maximum 500 psig (34.5 barg) |
| |
Explosion Tested to 750 psig (52 barg) |
| Protection Class |
IP65 |
| Operating Humidity |
≤90% without condensation |
|
 |
 |
|
