LK-BP Slab Mold Breakout Prediction System |
Main Features：

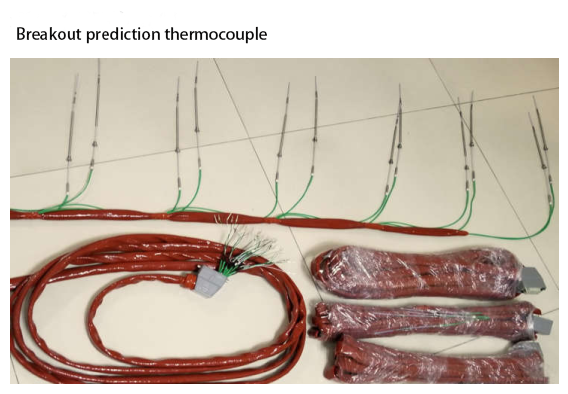

●High-Precision Thermocouple for Breakout Prediction with Imported Thermocouple Wire Encapsulation
●Fuzzy Neural Network Technology: Smarter, More Timely, and More Accurate
●Capable of Predicting Slag Entrainment, Sticking, Corner-Related, and Unknown-Type Breakouts (Algorithm)

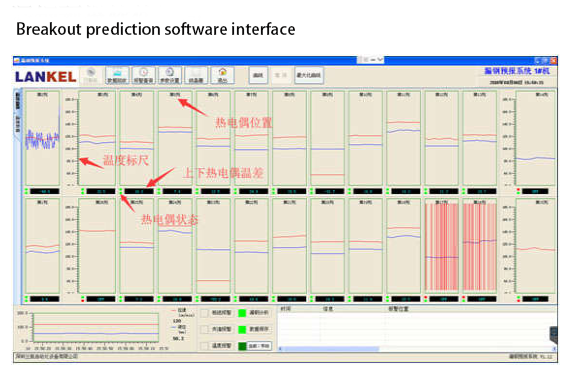

●Replay historical data and analyze historical data
●Can query historical alarm files and view alarm curves
●The alarm accuracy rate can reach over 90%
|
Main Application Fields：
It predicts potential breakouts by monitoring the temperature change trend of the upper copper plate of the mold online, and issues early warnings and disposal recommendations. |
Main Equipment：

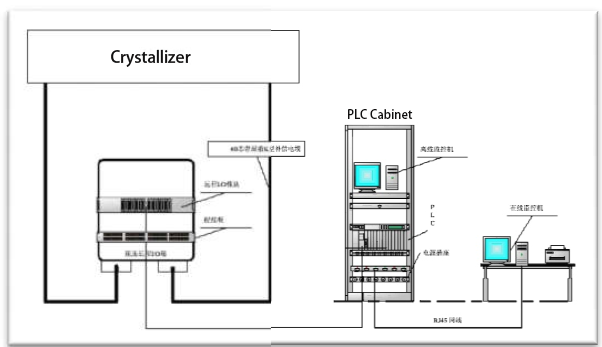

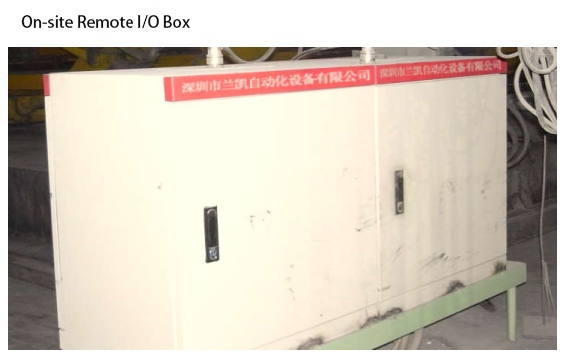

High-precision thermocouples, remote I/O temperature acquisition modules, PIC modules, PLC control cabinets, offline/online data processing servers, etc.
|
|
| Technical Parameters |
| Model： |
LK-BP Slab Mold Breakout Prediction System |
| Thermocouple Measurement Range： |
0℃~400℃ |
| Thermocouple Type： |
K-type Thermocouple Graduation |
| Thermocouple Allowable Deviation： |
±1℃ |
| Response Time： |
<0.5S |
| Thermocouple Acceptance Criteria |
| The temperature rise process of the thermocouple is stable |
| The thermocouple temperature response time is consistent |
| The thermocouple measurement linearity is consistent |
| Thermocouple Quality Execution Standards |
| IEC584 |
| IEC1515 |
| GB/T16839-1997 |
| Electrical Parameters |
| Analog Output： |
K-type Graduation |
| Digital Output： |
PROFIBUS DP |
| Power Supply： |
220VAC |
| General Parameters |
| Thermocouple Material： |
Stainless Steel |
| Thermocouple Operating Temperature： |
-20°C - +200°C |
| hermocouple Protection Class： |
IP68 |
| System Operating Humidity： |
≤90% No Condensation |
|
 |
|
 |
|
