SEND-IT Infrared Thermal Imager |
Main Performance：
●Temperature Measurement Range: -20~1800℃ (Segmented)
●Fast Processing up to 1KHz
●Maximum Resolution of 764x480 Pixels
●Accurate Acquisition of Target Surface Temperature Distribution at Millisecond-Level Speed
●Automatic Tracking of Cold and Hot Spots on the Measured Target
●Intelligent Thermal Imaging Analysis Software
|
Main Application Fields:
Metal heat treatment, ladles, rotary kiln shells, belt feeding, float glass, hot and cold rolled plates, motor equipment, distribution cabinet busbars, etc.
|
Standard Packaging:
Standard configuration: Main unit (including 2.5m cable), mounting nuts, operation manual |

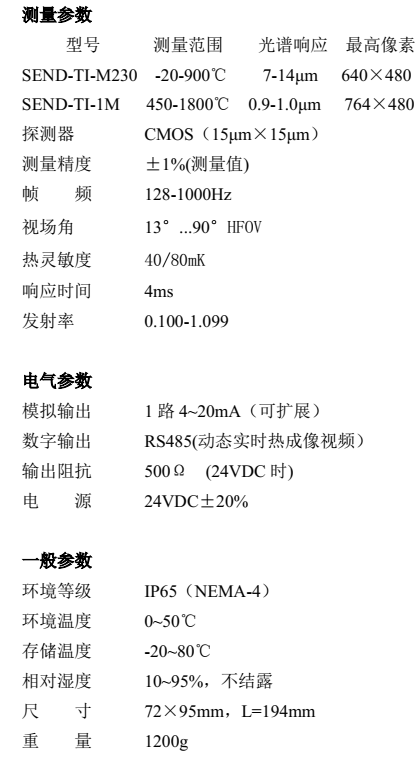

| Measurement Parameters |
| Model |
Measurement Range |
Spectral Response |
Maximum Pixels |
| SEND-TI-M230 |
-20 - 900℃ |
7 - 14μm |
640×480 |
| SEND-TI-1M |
450 - 1800℃ |
0.9 - 1.0μm |
764×480 |
| Detector: |
CMOS (15μm×15μm) |
| Measurement Accuracy: |
±1% (measured value) |
| Frame Rate: |
128 - 1000Hz |

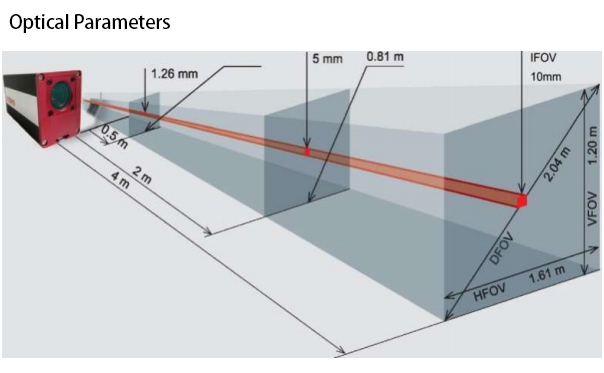

| Field of View: |
13°...90° HFOV |
| Thermal Sensitivity: |
40/80mK |
| Response Time: |
4ms |
| Emissivity: |
0.100 - 1.099 |
| Electrical Parameters |
| Analog Output: |
1 channel 4 - 20mA (expandable) |
| Digital Output: |
RS485 (dynamic real - time thermal imaging video) |
| Output Impedance: |
500Ω (at 24VDC) |
| Power Supply: |
24VDC ±20% |
| General Parameters |
| Environmental Rating: |
IP65 (NEMA-4) |
| Ambient Temperature: |
0~50℃ |
| Storage Temperature: |
-20~80℃ |
| Relative Humidity: |
10~95%, non-condensing |
| Dimensions: |
72×95mm, L=194mm |
| Weight： |
1200g |
|
 |
 |
 |
|
