| SNED-DI Series of Portable High-Performance Infrared Thermometers |
Main Performance：
●Measurement Range-32~1800℃ (in segments)

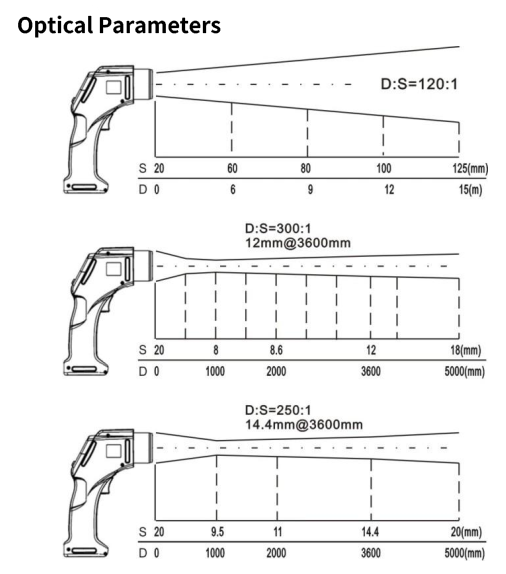

●Distance Coefficient: Up to 300:1
●Emissivity: Adjustable from 0.10 to 1.10
●With 2000-point data storage and a USB interface (optional accessory)
●Laser indicates the measurement target; telescope aiming (optional)

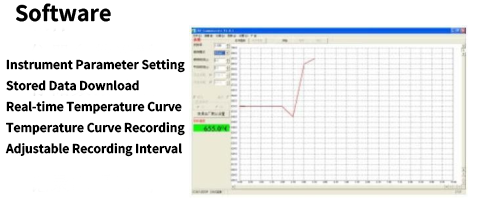

●With 2000-point data storage, USB interface and software (optional).
|
Main Application Fields：
Power supply systems, electrical equipment joints in substations, rubber, composite material induction heating, metallurgy, casting, furnace chambers, glass, ceramics, graphite, etc.
|

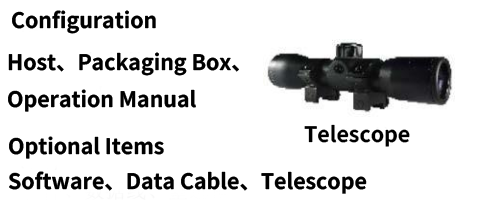

Package Contents：
Configuration：Main unit、 packing box、 operation manual
Optional Accessory: Software、 Data Cable、 Telescope |
| Technical Parameters |
| Model |
Measurement Range |
D:S |
Response Wavelength |
| SEND-DI-LT |
-32~1300℃ |
120:1 |
8~14 μm |
| SEND-DI-LT1 |
-32~800℃ |
120:1 |
8~14 μm |
| SEND-DI-HT1 |
650~1800℃ |
300:1 |
1.0 μm |
| SEND-DI-HT2 |
400~1600℃ |
300:1 |
1.6 μm |
| SEND-DI-HT3 |
200~1200℃ |
250:1 |
2.3 μm |
| Measurement Accuracy： |
±1% or ±1℃ (LT) |
| |
±(0.5% + 2℃) (HT) |
| Repeatability Accuracy ： |
±0.5% or ±1℃ (LT) |
| |
±0.3% or ±1℃ (HT) |
| Display Resolution： |
0.1℃ (<1000℃) |
| Response Time： |
300ms (LT) |
| |
100ms (HT) |
| Emissivity： |
Adjustable from 0.10 to 1.00 |
| Measurement Mode： |
Max/Min, Data Hold/Storage |
| Alarm Mode： |
High/Low Temperature Audible and Visual Alarm |
| Aiming Method： |
Dual Laser |
| Data Storage： |
2000 Points |
| Data Output： |
USB |
| Power Supply： |
9V Battery (or USB) |
| Operating Time： |
40 Hours (with Laser and Background Light Off) |
| Ambient Temperature： |
0~60℃ |
| Storage Temperature： |
-20~60℃ (without Battery) |
| Relative Humidity： |
10~95%, Non-Condensing |
| Dimensions： |
210×140×65mm |
| Weight： |
500g |
|
 |
 |
 |
|
