SEND-CS Single-color Infrared Thermometer |
Main Performance：
●Temperature Measurement Range: 20~2000℃ (Segmented)
●4~20mA Linear Output
●Spectral Response Below 2.3μm, Suitable for Metal Materials and Through-Glass Measurement
●Coaxial Laser Aiming for Easy and Accurate Positioning of the Measured Target
●Optional Lens Focal Length, Particularly Suitable for Small Target Measurement
●Stainless Steel Housing with Threads, Robust and Easy to Install
|
Main Application Fields:
Induction heating, metal heat treatment, highly reflective metals, ceramics, graphite, glass, microwaves, kilns, metallurgy, semiconductors, cement, steel, etc.
|
Standard Packaging:
Standard Configuration: Main unit (including 2.5m cable), mounting nuts, operation manual
Optional Items: Numerical control instrument, mounting bracket, purger, cooling jacket, infrared window |

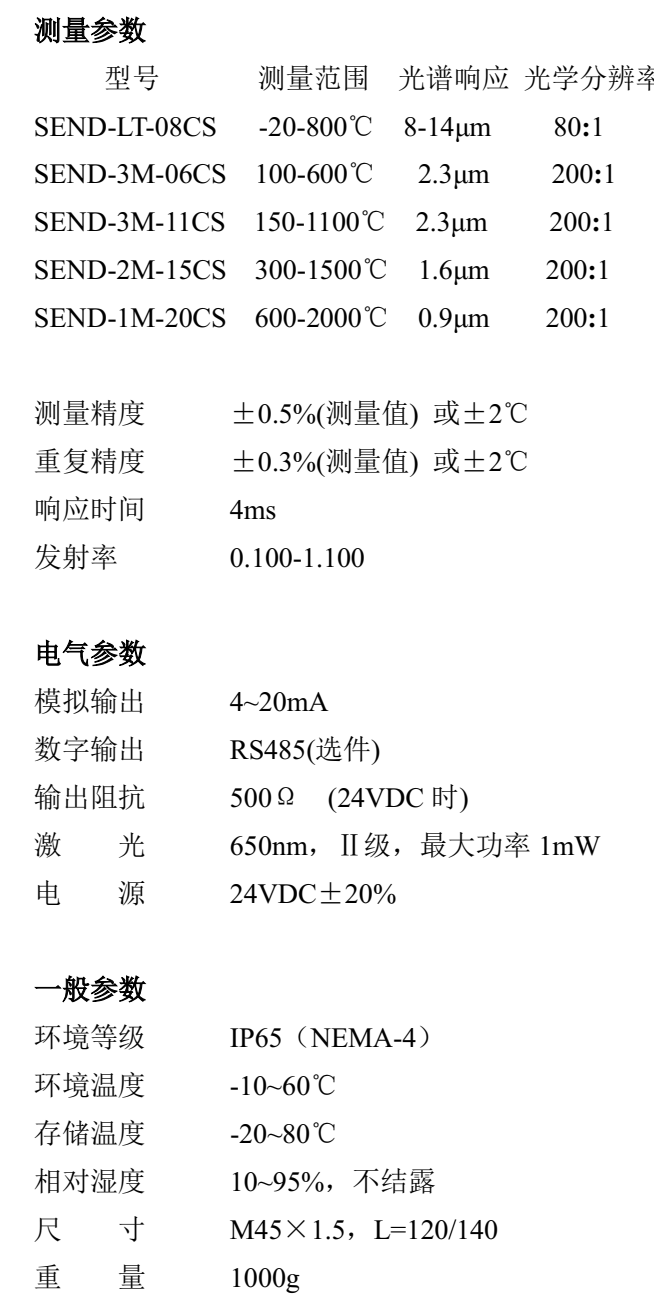

| Measurement Parameters |
| Model |
Measurement Range |
Spectral Response |

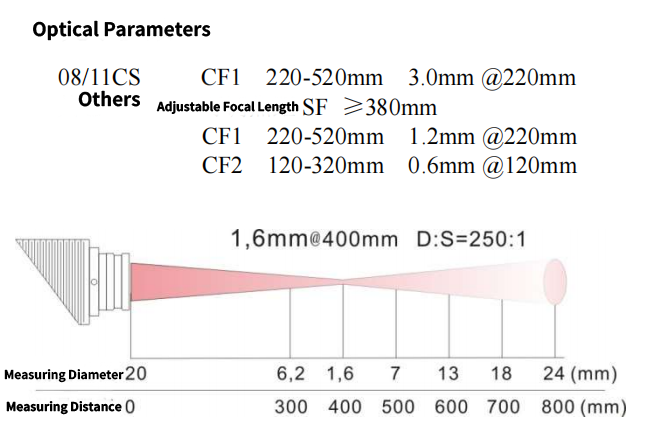

Optical Resolution |
| SEND-LT-08CS |
-20 - 800℃ |
8 - 14μm |
80:1 |
| SEND-3M-06CS |
100 - 600℃ |
2.3μm |
200:1 |
| SEND-3M-11CS |
150 - 1100℃ |
2.3μm |
200:1 |
| SEND-2M-15CS |
300 - 1500℃ |
1.6μm |
200:1 |
| SEND-1M-20CS |
600 - 2000℃ |
0.9μm |
200:1 |
| Measurement Accuracy： |
±0.5% (measured value) or ±2℃ |
| Repeatability Accuracy： |
±0.3% (measured value) or ±2℃ |
| Response Time： |
4ms |
| Emissivity： |
0.100 - 1.100 |
| Electrical Parameters |
| Analog Output: |
4 - 20mA |
| Digital Output: |
RS485 (optional) |
| Output Impedance: |
500Ω (at 24VDC) |
| Laser: |
650nm, Class Ⅱ, maximum power 1mW |
| Power Supply: |
24VDC ±20% |
| General Parameters |
| Environmental Rating: |
IP65 (NEMA - 4) |
| Ambient Temperature: |
-10 ~ 60℃ |
| Storage Temperature: |
-20 ~ 80℃ |
| Relative Humidity: |
10 ~ 95%, non - condensing |
| Dimensions: |
M45×1.5, L = 120/140 |
| Weight: |
1000g |
|
 |
 |
|
