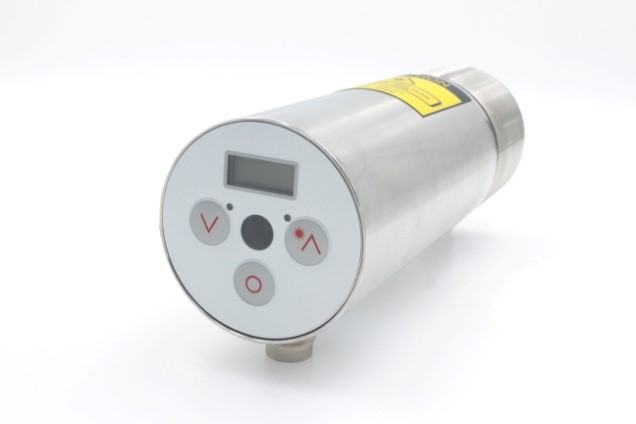

SEND-AR Dual-color Infrared Thermometer |
Main Performance：
●Temperature Measurement Range: 350~3000℃ (Segmented)
●4~20mA linear output, RS485 digital output
●Automatically compensates for the effects of dust, smoke, and lens obstruction
●Coaxial optical lens and laser aiming for easy accurate positioning of the measured target
●Monochrome and dual-color modes are switchable, making it particularly suitable for applications in different scenarios.
●The rear panel is equipped with an LCD display and quick-operation buttons.
●Robust stainless steel housing, suitable for harsh industrial on-site environments
|
Main Application Fields:
Induction heating, metal heat treatment, wire rods, ceramics, graphite, glass, microwaves, kilns, metallurgy, semiconductors
|
Standard Packaging：
Standard configuration: Main unit (including 4-meter connection cable), mounting nuts, operation manual
Optional items: Numerical control instrument, mounting bracket, purger, cooling jacket, infrared window |

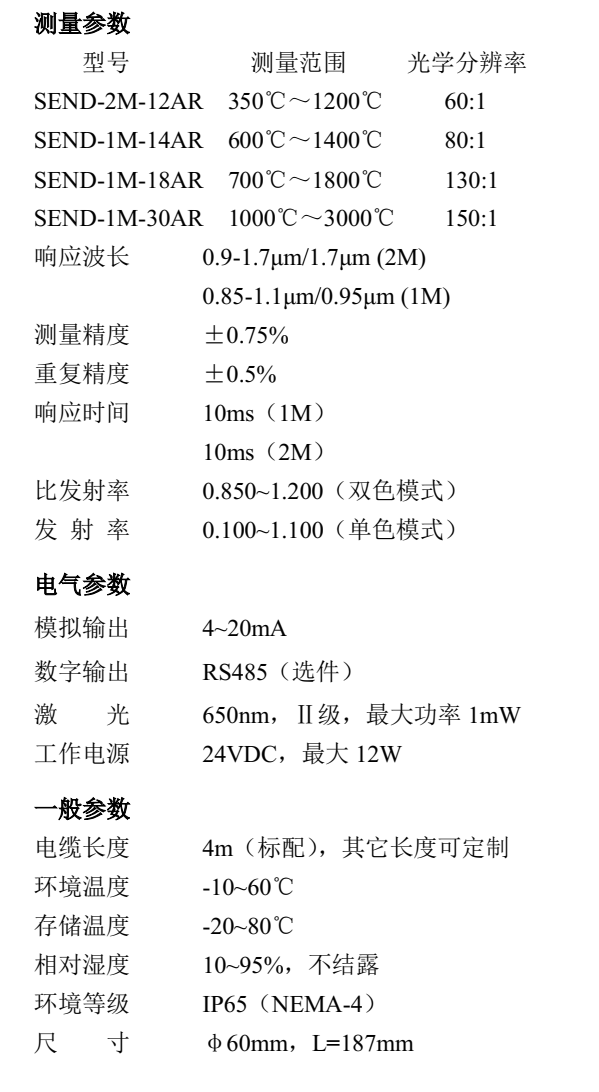

| Measurement Parameters |
| Model |
Measurement Range |

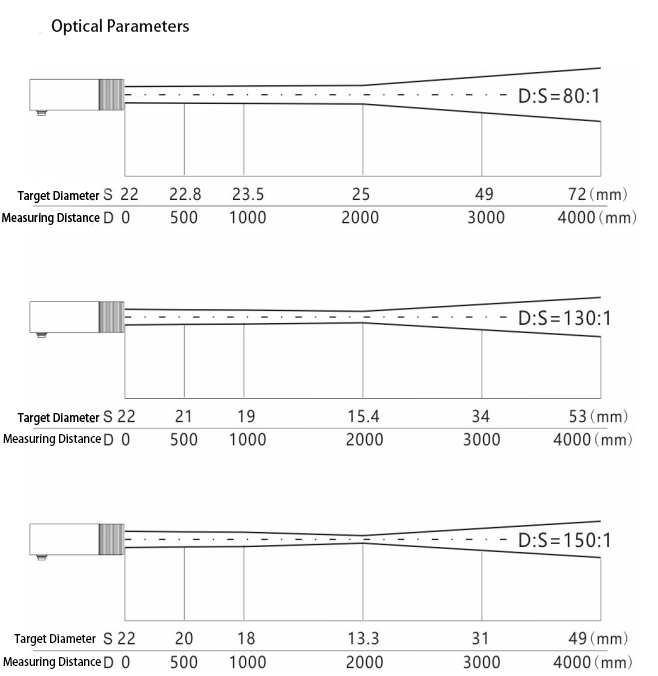

Optical Resolution |
| SEND-2M-12AR |
350℃～1200℃ |
60:1 |
| SEND-1M-14AR |
600℃～1400℃ |
80:1 |
| SEND-1M-18AR |
700℃～1800℃ |
130:1 |
| SEND-1M-30AR |
1000℃～3000℃ |
150:1 |
| Response Wavelength： |
0.9 - 1.7μm / 1.7μm (2M) |
| |
0.85 - 1.1μm / 0.95μm (1M) |
| Measurement Accuracy： |
±0.75% |
| Repeatability： |
±0.5% |
| Response Time： |
10ms (1M) |
| |
10ms (2M) |
| Emissivity Ratio (Dual - color mode)： |
0.850 - 1.200 |
| Emissivity (Single - color mode)： |
0.100 - 1.100 |
| Electrical Parameters |
| Analog Output： |
4 - 20mA |
| Digital Output： |
RS485 (Optional) |
| Laser： |
650nm, Class Ⅱ, Maximum Power 1mW |
| Operating Power Supply： |
24VDC, Maximum 12W |
| General Parameters |
| Cable Length： |
4m (standard), other lengths customizable |
| Ambient Temperature： |
-10~60℃ |
| Storage Temperature： |
-20~80℃ |
| Relative Humidity： |
10~95%, non-condensing |
| Environmental Rating： |
IP65 (NEMA - 4) |

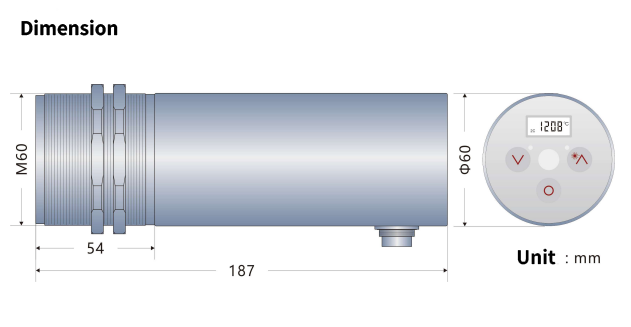

| Dimension： |
Φ60mm, L = 187mm |
|
 |
 |
|
