LK-TS Intelligent Temperature Transmitter-Controller |
Main Performance：
●High precision, good stability, high insulation, oil resistance, corrosion resistance
●Compact structure, small size, low power consumption, easy installation, vibration resistance, and strong anti-interference ability.
●Digital LED displays temperature and alarm, integrated analog output

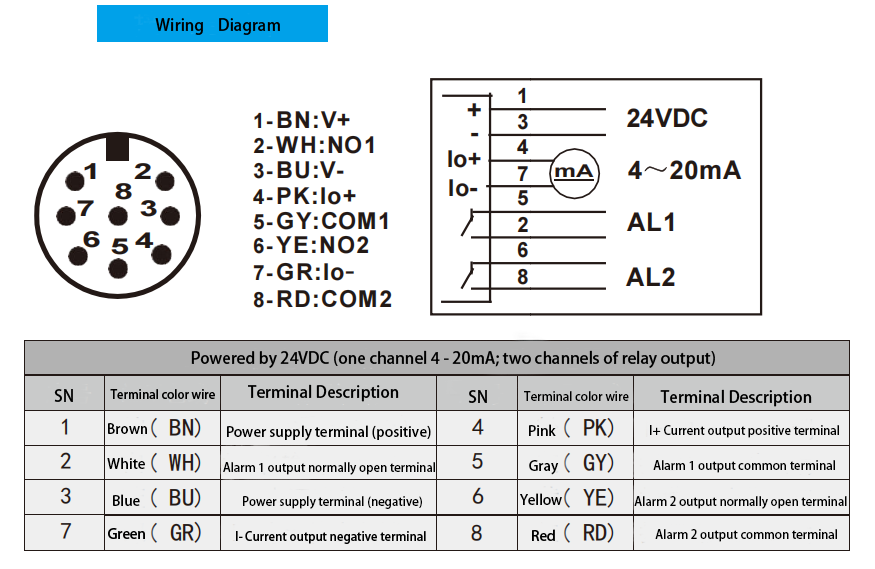

●The meter head displays temperature, converts the temperature signal into a 4~20mA standard signal to enable long-distance transmission and computer monitoring, and is equipped with two channels of alarm contact signal output.
● Suitable for measuring the temperature of various liquid, steam and gas media as well as solid surfaces.
|
| Main Technical Parameters |
| Low temperature range |
-50℃ ~ +200℃ |
| Accuracy class |
Class 0.25, Class 0.5 |
| Insulation strength |
≥50MΩ/500V |
| Operating voltage |
DC24V |
| Transmitting output current |
4 - 20mA |
| load resistance < 500Ω |
| Alarm output contacts |
2 (max) |
| Display mode |
4-digit LED |
| Installation method |

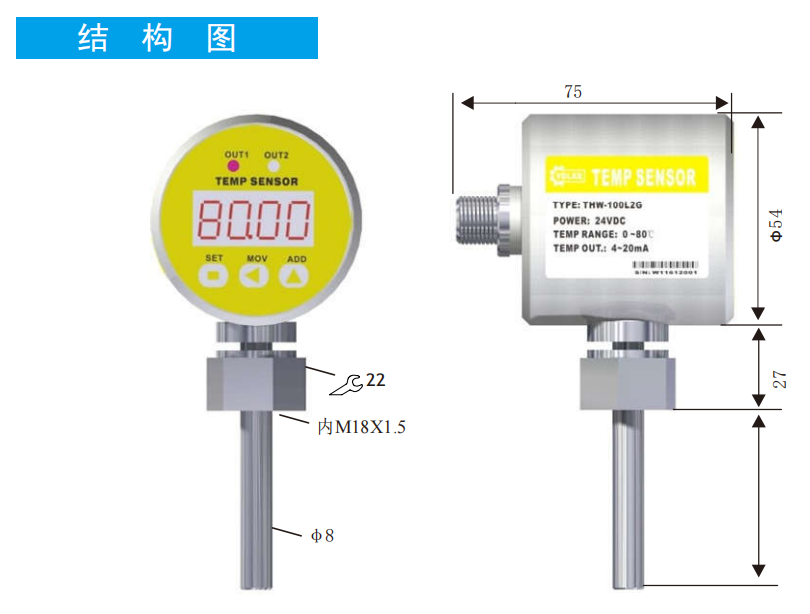

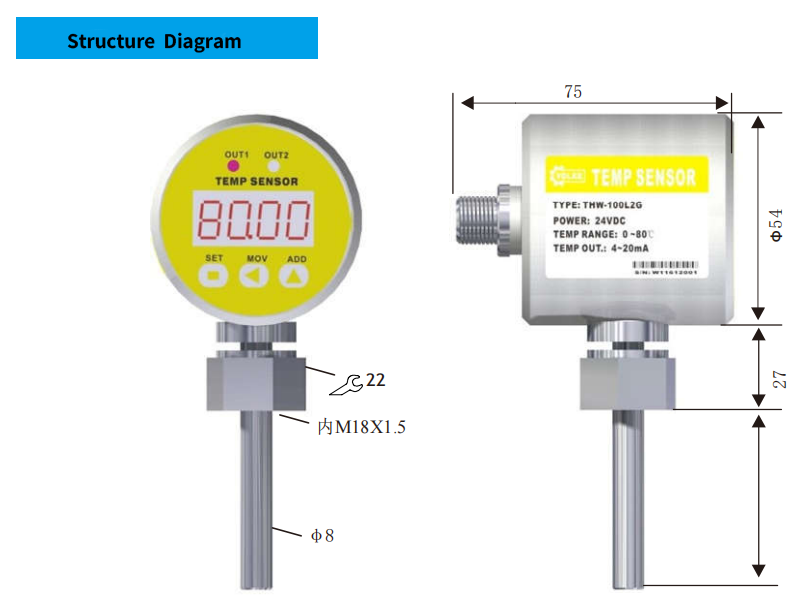

M18*1.5 live set thread |
| Ambient temperature |
-20 ~ 85℃ |
| Protection class |
IP65 |
|
 |
 |
|
