LK-TA Portable Taper Gauge |
Main Features：
●Temperature Measurement Range: ±20.0mm
●Imported Full Temperature Compensation
Digital High-Precision Inclinometer Sensor with Stable Performance
●Advanced algorithms enable automatic
correction of human errors during measurement
●High-brightness LED Display Screen
●Minimum measurable small taper: 0.05mm
●Calibration is simple, and gain is adjustable
●Powered by a rechargeable lithium battery,
it can be used continuously for 30 hours.
●Wear-Resistant Triangulation Contact
|
Main Application Fields：

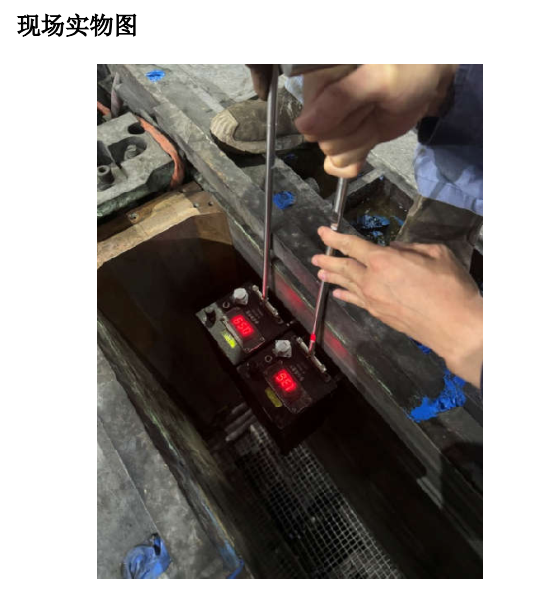

Used for crystallizers of various specifications, including arc-shaped, parabolic, and straight-plate types
|
Standard Packaging：
Standard Configuration: Main Unit, Carry Case, Charger, Instruction Manual

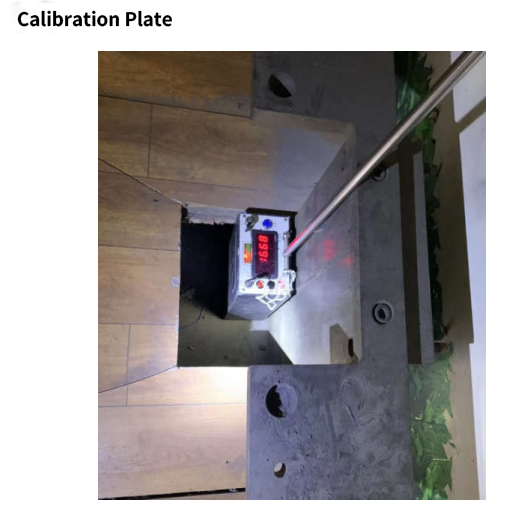

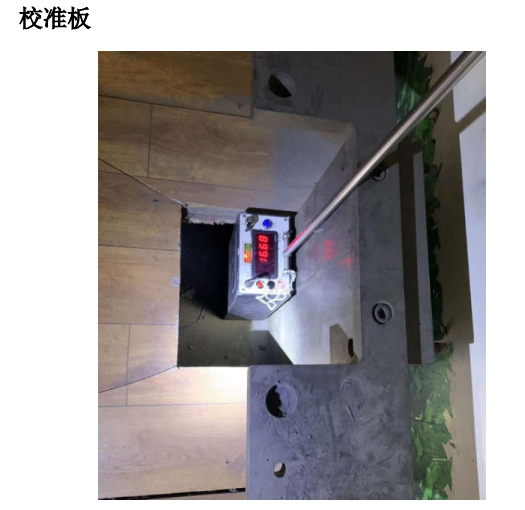

Optional Accessories: Calibration Stand, Frame Level, etc. |
| Measurement Parameters |
| Model： |
LK-TA-900 |
| Measurement Range： |
±20.0mm (customizable) |
| Display Resolution： |
0.01 mm |
| Measurement Accuracy： |
±0.02mm |
| Repeatability： |
±0.01mm |
| Response Time： |
10ms |
| Calibration Range： |
0.01 - 20.00 adjustable |
| Electrical Parameters |
| Display： |
LED Liquid Crystal Display |
| Power Supply： |
25.2V (Lithium Battery) |
| Power Consumption： |
Less than 1W (less than 0.02W in standby mode) |
| General Parameters |
| Environmental Class： |
IP65 (NEMA - 4) |
| Dimensions： |
450mm * 200mm * 200mm |
| Material： |
Aluminum Alloy |
| Weight： |
Approximately 4KG |
| Ambient Temperature： |
- 20 ~ 70°C |
| Storage Temperature: |
- 40 ~ 85°C |
| Relative Humidity： |
20 - 85%, No Condensation |
| Vibration Resistance Class: |
EN 60947 - 5 - 2 |
|
 |
 |
|
