LK-MR Series Microwave Radar Positioner |
Main Features：
●It can still achieve precise positioning in harsh
environments such as heavy dust.
●The maximum measurement range can reach 500 meters.
●Stable power consumption with extremely low
power consumption (5W)

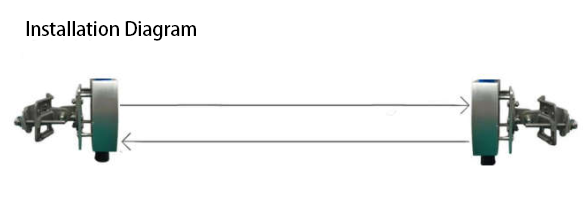

●Easy to install, no need for precise aiming
●It adopts a power-on-and-measure mode, and the
instrument can work normally immediately after being
powered on.
●Digital output ports include PROFIBUS/RS232/RS485
●Analog output includes 4-30mA current output
or wireless transmission
|
Main Application Fields：

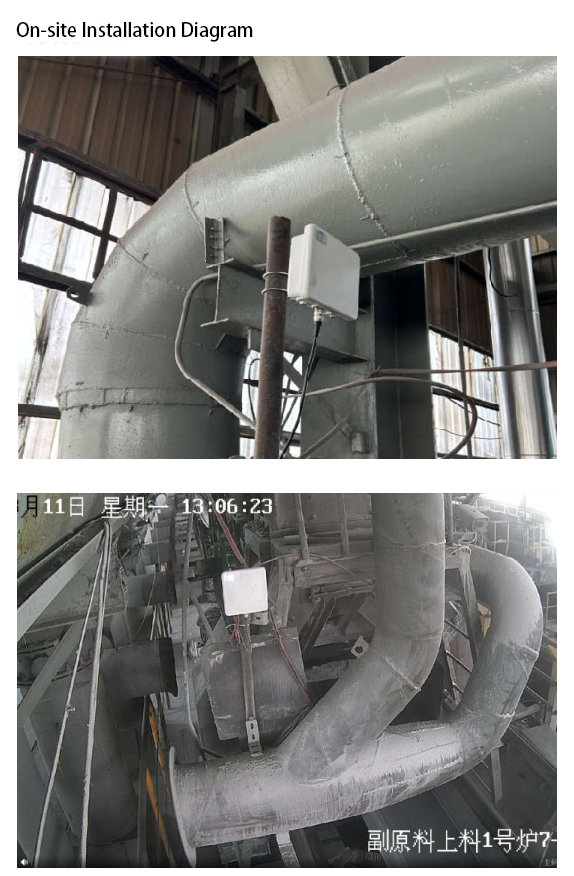

Used in all on-site scenarios requiring precise positioning, such as discharge trolleys, ladle trolleys, the four major coking vehicles, traveling cranes, railcars, stacker-reclaimers, and ships.
|
Package Contents：
Standard Configuration: Main Unit, Adjustable Universal Bracket, Operation Manual, Communication Cable
Optional Accessories: PROFIBUS DP Digital Output, Wireless Analog Signal Transmission, etc.
|
| Measurement Parameters |
| Model： |
LK - LM100M |
| Measurement Range： |
0.5 - 100m (standard configuration)
(200m/500m customizable) |
| Resolution： |
1mm |
| Measurement Accuracy： |
±10mm |
| Repeatability： |
±5mm |
| Operating Frequency： |
4.7GHz |
| Response Time： |
10ms |
| Electrical Parameters |
| Analog Output: |
4 - 20 mA |
| Digital Output： |
RS485/RS232/PROFIBUS DP |
| Power Supply： |
12 - 24VDC |
| Power Consumption： |
Less than 5W |
| General Parameters |
| Housing Material: |
Aluminum Alloy |
| Antenna Configuration: |
Directional Antenna |
| Dimensions: |
250*250*80mm |
| Weight: |
1.5 Kg |
| Protection Class: |
IP65 |
| Vibration Resistance Class: |
EN 60947-5-2 |
| Operating Temperature: |
-20℃～+85℃ |
| Storage Temperature: |
-40℃～+85℃ |
| Interface: |
Output Cable |
|
 |
 |
|
