		LK-LR10M Series of Laser Distance Measuring Sensors
		Main Features： ●Reliable optical distance measurement with a maximum range of up to 10m ●2 switch outputs; one of them can be programmed as an analog output ●Stable power consumption with extremely low electricity consumption (approximately 1W) ●Uses a visible laser beam, making it easy to aim at the measured object ●Adjustable measuring range and window function ●Suitable for applications requiring background suppression function

Main Application Fields：

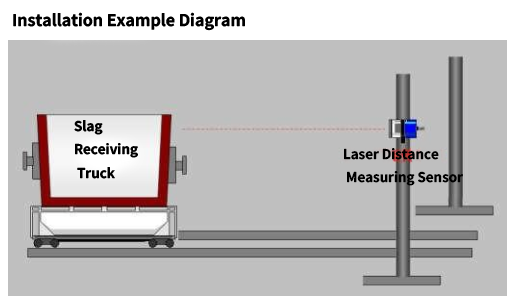

For slag receiving trucks or other on-site locations that require distance measurement

Package Contents：
Standard Configuration： Main Unit、Adjustable Universal Bracket、 Operation Manual
Selection：Water-cooled protective jacket、 wireless transmission of analog signals, etc.

Measurement Parameters
Model:	LK-LR10M-NP 0.2~
Measurement Range:	10m
Resolution:	1mm
Measurement Accuracy:	±10mm
Repeatability:	±5mm
Measurement Laser:	650nm (Class 1 Safe Laser)
Measurement Frequency:	50Hz
Maximum Spot Size:	15*15 mm (at 10m)
Response Time:	10ms
Electrical Parameters
Analog Output:	4-20 mA (Configurable)
Switch Output:	PNP (Two-channel NO/NC Configurable)
Power Supply:	12-24VDC
Display:	4-digit LED
General Parameters
Housing Material:	Aluminum Alloy
Dimensions:	75 x 45 x 50 mm
Weight:	600g
Protection Class:	IP67
Storage Temperature:	-10°C ~ +60°C

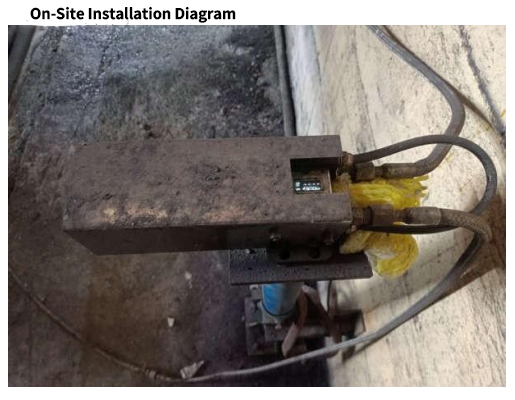

Equipped with a Fully Enclosed High-Temperature Resistant Water-Cooled Jacket (Aluminum Alloy)
Ambient Temperature: -20 - 180°C (with Water-Cooled Jacket and Blow-Off Function)
