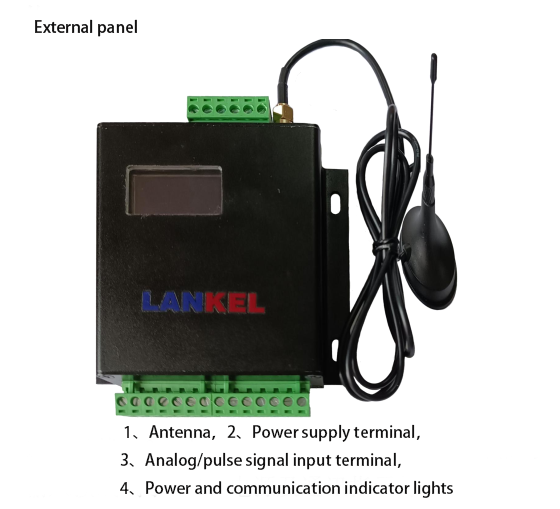

LK-GSM/GPRS Intelligent Multi-channel Wireless Transmission Instrument |
Main Features：
●Transmit analog/switch signals via GSM/CDMA/GPRS
●Configure via connecting to the instrument's built-in WIFI module with a mobile phone, which is convenient and efficient.
●1-to-many replaces wired transmission, featuring plug-and-play functionality.
●Transmission is possible as long as there is a mobile phone signal, with unlimited distance and extremely low power consumption.
●It can use an IoT SIM card, and there is no need to apply for a frequency usage license.
●Terminal acquisition can connect to PLC, industrial computer, notebook computer, single-chip microcomputer, etc.
|
Main Application Fields：
Industrial data signal acquisition, water flow acquisition, wireless data connection, control and processing system, hydrometeorological monitoring, telemetry wireless network, etc.
|
Package Contents：
Standard configuration: Transmitting host, antenna, operation manual, etc.
Optional: PROFIBUS DP/RS232 digital output, etc. |
| Performance Parameters |
| Model： |
LK - GSM/GPRS - 4G |
| Transmission distance： |
Unlimited (GSM/GPRS) |
| Communication mode： |
GSM/GPRS |
| Communication frequency： |
GSM900MHz/EGSM1800MHz dual - band |
| Transmission accuracy： |
< 0.5% (not exceeding 0.02mA at maximum) |
| Transmission delay： |
< 500ms |
| Processor chip： |
Adopts high - speed and low - power ARM
processor chip |
| Electrical Parameters |
| Input signal: |
4 - 20 mA / switching signal
(multi - channel) |
| Power supply requirement: |
24VDC |
| Rated power: |
Instantaneous < 5W, average < 3W |
| Input current: |
Instantaneous peak < 2.5A, average current < 100mA |
| Antenna specification: |
Suction cup antenna, SMA standard interface |
| General Parameters |
| Material: |
Aluminum alloy |
| Size: |
120 (L) * 100 (W) * 30 (H) mm |
| Storage temperature: |
-40 ~ +85°C |
| Operating ambient temperature： |
-25°C ~ 70°C |
| Vibration resistance grade： |
EN 60947-5-2 |
| Relative humidity： |
95% RH, no condensation |
| Weight： |
Approximately 0.5 Kg |
|
 |
| |
|
