LK-EF Insertion Electromagnetic Flowmeter |
Main Features：
●Adopts advanced low-frequency square wave excitation, featuring stable zero point and strong anti-interference capability.

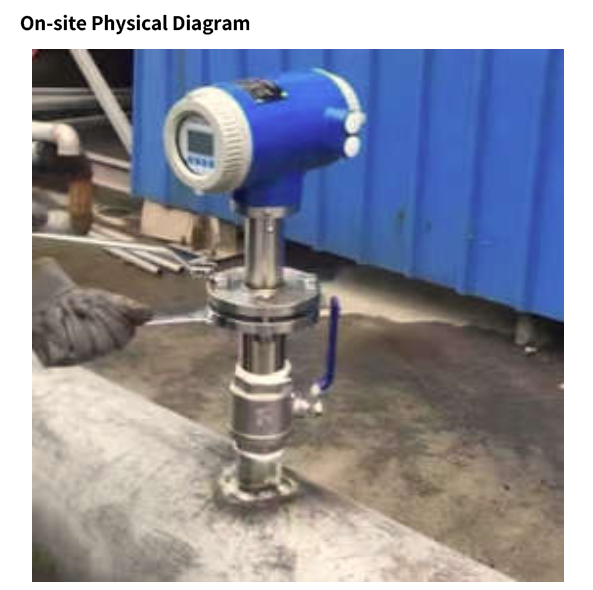

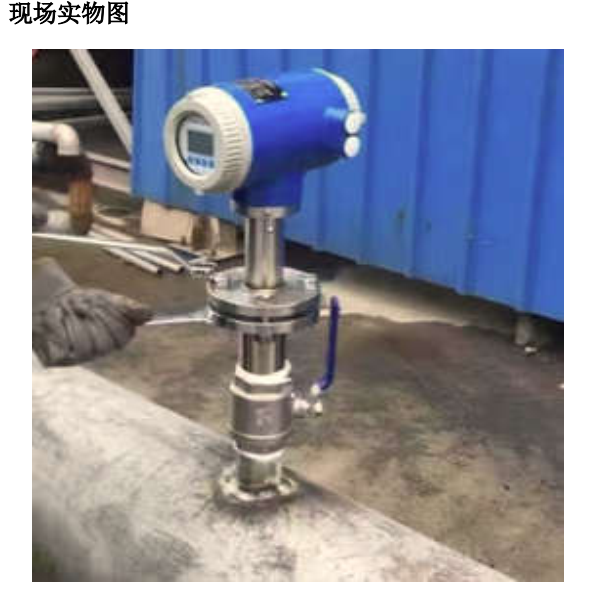

●It can be conveniently installed and disassembled without stopping the water supply, either under low pressure or pressurized conditions.
●Not affected by the temperature, pressure, density, or conductivity of the measured medium.
●Especially suitable for flow measurement in large and medium-diameter pipelines.
●The sensor has almost no pressure loss and extremely low energy consumption.
●The flow measurement range is wide, with the flow velocity adjustable from 1m/s to 10m/s.
|
Main Application Fields：
Suitable for flow measurement of conductive liquids and automatic control of production processes in petrochemical, electric power, metallurgy, water supply and drainage, sewage treatment and other industries.
|
Main Components：
Measuring head (or measuring tube), excitation system, insertion rod, junction box (or integrated meter head), mounting base, sealing and positioning mechanism, etc. |
| Technical Parameters |
| Model： |
LK - EF - IN100/300 |
| Accuracy： |
±0.5% (when full - scale flow velocity > 1 m/s) |
| Flow Velocity Measurement Range： |
Adjustable from 0 ~ 1 m/s to 0 ~ 10 m/s |
| Conductivity of Measured Medium： |
Greater than 30 μS/cm |
| Maximum Temperature of Measured Medium： |
60°C (ABS) |
| Pressure Resistance： |
1.6 MPa |
| Connection Method： |
Flange/thread (screw) ball valve connection |
| Applicable Pipe Diameter： |
DN100 - 300mm |

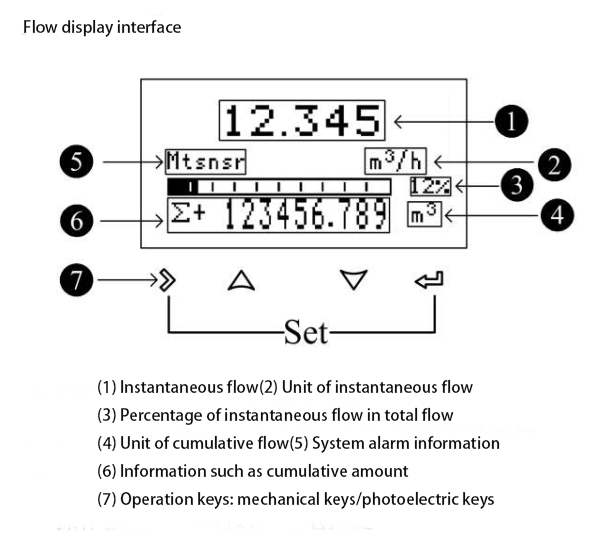

| Electrical Parameters |
| Working Voltage： |
DC 24 V, AC 220 V |
| Power Consumption： |
15 W |
| Output： |
4 - 20mA, RS485, Pulse |
| Protocol： |
ModBus RTU |
| Frequency： |
1 - 5kHz |
| General Parameters |
| Electrode Material： |
316L, HC, etc. |
| Measuring Tube (Measuring Head) Material： |
ABS |
| Shell Material： |
Aluminum Alloy |
| Operating Temperature： |
-10°C - 60°C |
| Environmental Conditions： |
-20°C - 60°C |
| Protection Class： |
IP68 |
| Operating Humidity： |
≤95% without condensation |
|
 |
 |
|
