LK-D8150 Dry-block Calibrator |
Features：
●Temperature Range: 50℃ ~ 1600℃
●Touchscreen Digital Display Temperature Controller, allowing arbitrary adjustment of the desired temperature
●The instrument features stable temperature control, excellent uniformity, and outstanding precision.
●It is designed with a compact structure for easy portability and convenient operation.
●Each device undergoes strict calibration (calibration certificate optional)
●The product comes with a one-year warranty.
|
Technical Advantages：
●Adopt technologies such as single-chip microcomputer for data analysis and control, analog and digital multiple filtering, and modular parameter setting.
●Parameters such as PID parameters, hysteresis, upper and lower limit alarm values, and output power can all be set on the panel.
●Phase-shifting or zero-crossing triggering of thyristors is adopted, and the maximum output power can be controlled manually or automatically, enabling optimal temperature control effects at different temperatures.
●A RS485 digital output optional interface is provided. Users can connect to a computer using the provided software to observe and record temperature control data and waveforms in real-time.
●The heating element has a long service life and fast temperature stabilization. It is thermally insulated from the shell. Software-controlled voltage-limited heating is adopted, eliminating the need for a high-power power transformer.
●The Dry Block Calibrator Series features a lightweight and novel appearance design, adopting an integrated structure of the furnace body and the temperature controller.
|
Application Fields：
●Temperature calibration sources for thermal resistors and thermocouples, suitable for aerospace institutions, scientific research institutes, colleges and universities, factory metrology stations, laboratories and other units.
●Optional multi-aperture temperature-equalizing block enables simultaneous testing and calibration of multiple thermocouples.
|
| Main Technical Indicators |
| Temperature Range |
Ambient temperature + 10°C ~ 150°C |
| Resolution |
0.1°C |
| Accuracy |
±0.1°C |
| Stability |
0.1% ± 0.25°C / 10 minutes |
| Operation Panel |
Touch screen |
| Aperture of Constant Temperature Cavity |
Φ63.5mm (controllable solid temperature field) |
| Size of Temperature - Equalizing Block |
Φ63.5mm * 100mm (with 8 detection holes) |
| Sensor |
Precision thermal resistor |
| Control Method |
Program - controlled digital PID controller |
| Ambient Temperature |
5 ~ 44°C |
| Operating Power Supply |
220V AC ±10%, 50/60Hz, 500W |

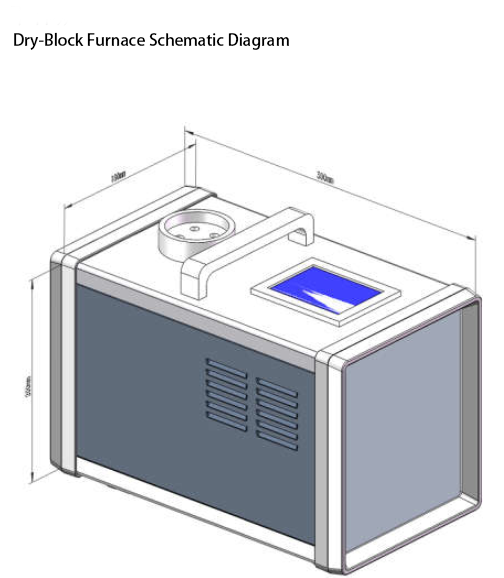

| External Dimensions |
300mm × 180mm × 200mm (length × width × height) |
| Weight |
5kg |
| Calibration Certificate |
Provided by provincial metrology institute (optional) |
|
 |
|
