LK-AL Rechargeable Wireless Alarm |
Main Features：
●For warning moving trolleys/carts, wire-free
●No programming required, replaces wired alarms, plug-and-play
●Strong anti-interference ability, suitable for signal transmission in harsh environments
●1000m transmission distance (no obstruction), extremely low power consumption (less than 2W)
●Can work in the public frequency band, no need to apply for a frequency use license
●Rechargeable battery, usable for one month on a single charge
|
Main Application Fields：
Small vehicles, ladle trolleys, charging trolleys, traveling cranes, etc., moving in industrial environments
|
Packaging Content：

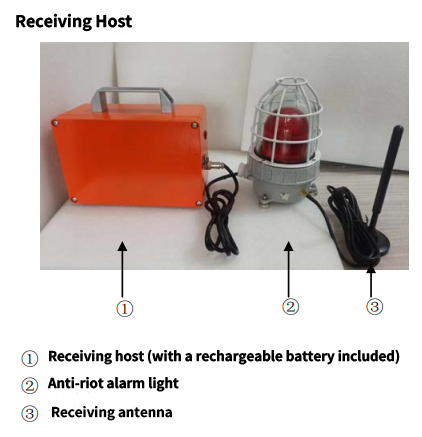

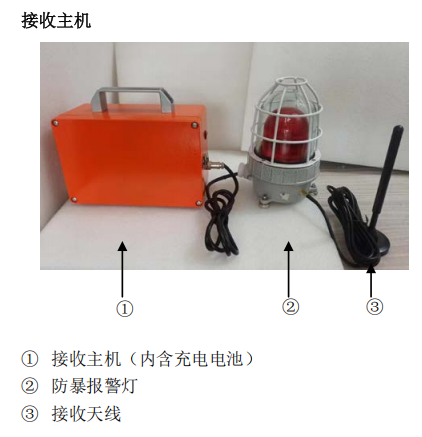

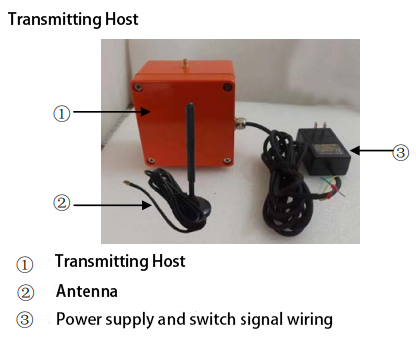

Standard configuration: transmitting host, receiving host, explosion-proof alarm light, antenna, rechargeable battery, operation manual, etc. |
| Performance Parameters |
| Model： |
LK - AL - MA - □□AH |
| Transmission Distance： |
1000m (without obstruction) |
| Operating Frequency： |
355 - 570MHz |
| Sensitivity： |
−111 to −148dBm |
| Modulation Method： |
LoRa |
| Transmission Delay： |
< 500ms |
| Electrical Parameters |
| Input Signal： |
Switch signal (with feedback) |
| Output Signal： |
Switch signal |
| Power Supply Requirements： |
24VDC (transmitting host) |
| |
12VDC 10AH lead - acid battery (receiving host) |
| Power Consumption： |
Less than 2W (less than 0.02W in standby) |
| Antenna Specification： |
Suction cup antenna, SMA standard interface |
| General Parameters |
| Material： |
Aluminum alloy (main unit), explosion-proof material
(alarm light) |
| Dimensions： |
240 (L) * 160 (W) * 100 (H) mm |
| Installation Method： |
Magnetic suction cup |
| Ambient Temperature： |
-10 - 85°C |
| Operating Ambient Temperature： |
0°C - 60°C |
| Vibration Resistance Grade： |
EN 60947-5-2 |
| Relative Humidity： |
10% - 90% RH, no condensation |
| Weight： |
Approximately 2 Kg |
|
 |
 |
|
